VZBM-11/4-RP-40-D-2-M-B2B3 FESTO

4405690 FESTO

Weight

0.768 kg

country of origin

direction of flow

reversible

DN średnica nominalna

material

chrome plated brass

medium

Sprężone powietrze wg ISO8573-1:2010 [-:-:-], ciecze obojętne, Gazy obojętne, Woda – nie para wodna

nominal pressure [bar]

thread

Rp 1 1/4

type

ball valve

valve function

2/2

Details Attributes

VZBM-11/4-RP-40-D-2-M-B2B3 FESTO

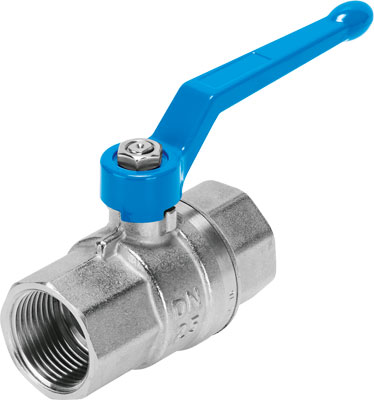

Ball valve

Data sheet:

Name: VZBM-11/4-RP-40-D-2-M-B2B3 FESTO
Rating: 4.8 (6 reviews)

Feature	Value
Design structure	2-way ball valve
Type of actuation	mechanical
Sealing principle	soft
Assembly position	Any
Mounting type	Line installation
Process valve connection	Rp1 1/4
Switching position indicator	Slot direction = flow direction
Inside diameter	32 mm
Nominal diameter DN	32
Valve function	2/2
Flow direction	reversible
Nominal pressure of process valve	40
Actuation moment at differential pressure, process valve nominal pressure	37 Nm
Based on the standard	EN 10226-1
Medium	Compressed air in accordance with ISO8573-1:2010 [-:-:-] Inert gases Water (no water vapour) Neutral fluids
Medium temperature	-15 ... 120 °C
Flow rate Kv	84 m3/h
Materials note	Contains PWIS substances Conforms to RoHS
Material housing	Brass Nickel plated
Material number for housing	CW617N
Material seals	NBR PTFE
Material ball	Brass Chromed-plated
Material number for ball	CW617N
Material shaft	Brass
Material number for shaft	CW617N
Product weight	770 g
Authorisation	DVGW gas DVGW water
CE mark (see declaration of conformity)	to EU directive pressure devices
Corrosion resistance classification CRC	1 - Low corrosion stress

manufacturer	FESTO
dimensions	0 x 0 x 0
Weight	0.768 kg
thread	Rp 1 1/4
material	chrome plated brass
type	ball valve
country of origin
DN średnica nominalna	32
valve function	2/2
direction of flow	reversible
nominal pressure [bar]	40
medium	Sprężone powietrze wg ISO8573-1:2010 [-:-:-], ciecze obojętne, Gazy obojętne, Woda – nie para wodna
