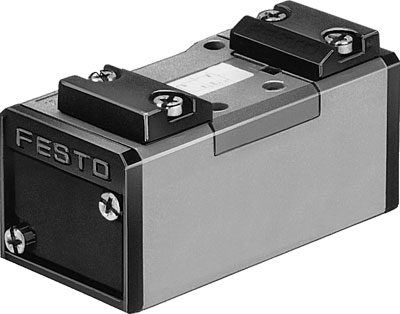

Feature |
Value |
| Valve function |
5/2 bistable |
| Type of actuation |
pneumatic |
| Width |
42 mm |
| Standard nominal flow rate |
1,200 l/min |
| Operating pressure |
-0.9 ... 16 bar |
| Design structure |
Piston slide |
| CE mark (see declaration of conformity) |
to EU directive explosion protection (ATEX) |
| ATEX category Gas |
II 2G |
| ATEX category Dust |
II 2D |
| Explosion ignition protection type Gas |
Ex h IIC T4 Gb |
| Explosion ignition protection type Dust |
Ex h IIIC T130°C Db |
| Explosion-proof ambient temperature |
-10°C <= Ta <= +60°C |
| Nominal size |
8 mm |
| Grid dimension |
43 mm |
| Exhaust-air function |
throttleable |
| Sealing principle |
soft |
| Assembly position |
Any |
| Conforms to standard |
ISO 5599-1 |
| Manual override |
None |
| ISO code |
101 |
| Type of piloting |
direct |
| Flow direction |
reversible |
| Overlap |
Positive overlap |
| Pilot pressure |
2 ... 16 bar |
| Switching time reversal |
6 ms |
| Operating medium |
Compressed air in accordance with ISO8573-1:2010 [7:4:4] |
| Note on operating and pilot medium |
Lubricated operation possible (subsequently required for further operation) |
| Vibration resistance |
Transport application test at severity level 1 in accordance with FN 942017-4 and EN 60068-2-6 |
| Shock resistance |
Shock test with severity level 2 in accordance with FN 942017-5 and EN 60068-2-27 |
| Medium temperature |
-10 ... 60 °C |
| Sound pressure level |
85 dB(A) |
| Pilot medium |
Compressed air in accordance with ISO8573-1:2010 [7:4:4] |
| Ambient temperature |
-10 ... 60 °C |
| Product weight |
290 g |
| Mounting type |
On sub-base
with through hole |
| Pilot air port 12 |
Connection plate size 1 as per ISO 5599-1 |
| Pilot air port 14 |
Connection plate size 1 as per ISO 5599-1 |
| Pneumatic connection, port 1 |
Connection plate size 1 as per ISO 5599-1 |
| Pneumatic connection, port 2 |
Connection plate size 1 as per ISO 5599-1 |
| Pneumatic connection, port 3 |
Connection plate size 1 as per ISO 5599-1 |
| Pneumatic connection, port 4 |
Connection plate size 1 as per ISO 5599-1 |
| Pneumatic connection, port 5 |
Connection plate size 1 as per ISO 5599-1 |
| Materials note |
Conforms to RoHS |
| Material seals |
HNBR
NBR |
| Material housing |
Aluminium die cast |
