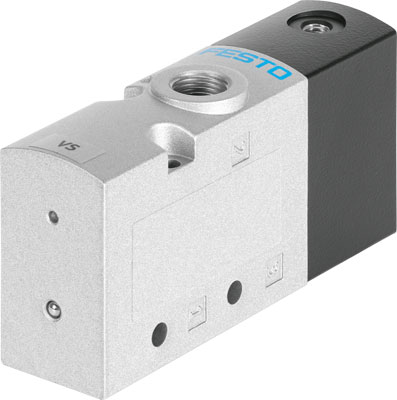

You are here: VUWS-L25-M32C-M-G14 FESTO

Pneumatic valve

VUWS-L25-M32C-M-G14 FESTO

575485 FESTO
Weight 0.28 kg
country of origin China
direction of flow reversible
pilot air supply internal
pilot pressure [bar] 2,5÷10
type pneumatic valve
valve function 3/2-way, closed, single solenoid
working medium Sprężone powietrze wg ISO8573-1:2010 [7:4:4]
working pressure [bar] -0,9÷10
Plewiska (2)

on stock

VUWS-L25-M32C-M-G14 FESTO

Pneumatic valve

Data sheet:




Feature Value
Valve function 3/2 closed, monostable
Type of actuation pneumatic
Valve size 26.5 mm
Standard nominal flow rate 1,000 l/min
Operating pressure -0.9 ... 10 bar
Design structure Piston slide
Type of reset mechanical spring
Authorisation c UL us - Recognized (OL)
Nominal size 6.3 mm
Exhaust-air function throttleable
Sealing principle soft
Assembly position Any
Manual override None
Type of piloting direct
Pilot air supply Internal
Flow direction reversible
Overlap Positive overlap
Pilot pressure 2.5 ... 10 bar
Switching time off 43 ms
Switching time on 10 ms
Operating medium Compressed air in accordance with ISO8573-1:2010 [7:4:4]
Note on operating and pilot medium Lubricated operation possible (subsequently required for further operation)
Vibration resistance Transport application test at severity level 2 in accordance with FN 942017-4 and EN 60068-2-6
Shock resistance Shock test with severity level 2 in accordance with FN 942017-5 and EN 60068-2-27
Corrosion resistance classification CRC 2 - Moderate corrosion stress
Medium temperature -10 ... 60 °C
Pilot medium Compressed air in accordance with ISO8573-1:2010 [7:4:4]
Ambient temperature -10 ... 60 °C
Product weight 268 g
Mounting type on manifold rail
with through hole
Optional
Scavenging orifice connection Non-ducted
Pilot air port 12 M5
Pneumatic connection, port 1 G1/4
Pneumatic connection, port 2 G1/4
Pneumatic connection, port 3 G1/4
Materials note Conforms to RoHS
Material seals HNBR
NBR
Material housing Aluminium die cast
Painted
Material Piston slide Wrought Aluminium alloy
Material screws Galvanised steel
Attributes
manufacturer FESTO
dimensions 0 x 0 x 0
Weight 0.28 kg
working pressure [bar] -0,9÷10
type pneumatic valve
country of origin China
valve function 3/2-way, closed, single solenoid
direction of flow reversible
pilot air supply internal
pilot pressure [bar] 2,5÷10
working medium Sprężone powietrze wg ISO8573-1:2010 [7:4:4]
