Data sheet:

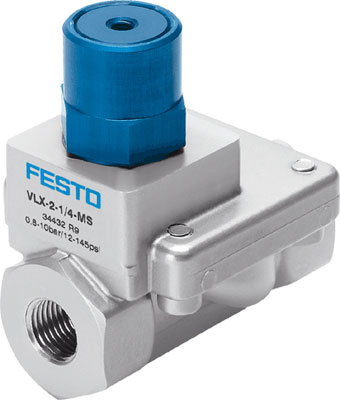

Name: VLX-2-1-MS FESTO
Rating: 4.9 (13 reviews)

Feature	Value
Design structure	Diaphragm valve
Type of actuation	pneumatic
Sealing principle	soft
Assembly position	Any
Mounting type	Line installation
Process valve connection	G1
Nominal size	25 mm
Valve function	2/2 closed, monostable
Flow direction	non reversible
Medium pressure	1 ... 10 bar
Exhaust-air function	not throttleable
Type of reset	Air spring
Type of piloting	Piloted
Pilot medium	Compressed air in accordance with ISO8573-1:2010 [7:-:-]
Medium	Filtered compressed air, degree of filtration 200 µm
Medium temperature	-10 ... 80 °C
Ambient temperature	-10 ... 60 °C
Standard nominal flow rate	14,000 l/min
Material housing	Brass
Material screws	High alloy steel, non-corrosive
Material number, screw	1.4301
Product weight	1,010 g

manufacturer	FESTO
dimensions	0 x 0 x 0
Weight	1.222 kg
thread	G 1
type	pneumatic valve
country of origin
valve function	2/2-way, closed, monostable
direction of flow	non-reversible
medium pressure [bar]	1÷10
medium	Sprężone powietrze, filtrowane, stopień filtracji 200 µm
