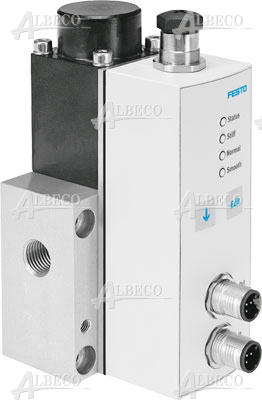

Feature |
Value |
| Nominal diameter, pressurisation |
2.5 mm |
| Nominal diameter, exhaust |
2.5 mm |
| Type of actuation |
electrical |
| Sealing principle |
soft |
| Assembly position |
Any
Preferably upright |
| Design structure |
directly-controlled piston regulator |
| Short circuit strength |
No |
| Safety instructions |
Safety setting VPPL |
| Polarity protected |
for all electrical connections |
| Type of reset |
mechanical spring |
| Type of piloting |
direct |
| Valve function |
3-way closed proportional-pressure regulator |
| Type of display |
LED display |
| Operating pressure |
<= 20 bar |
| Pressure regulation range |
0.2 ... 20 bar |
| Inlet pressure 1 |
0 ... 50 bar |
| Max. pressure hysteresis |
0.2 bar |
| b value |
0.25 |
| C value |
0.8 l/sbar |
| Standard nominal flow rate |
300 l/min |
| Switching time off |
550 ms |
| Switching time on |
300 ms |
| Operating voltage range DC |
21.6 ... 27.6 V |
| Duty cycle |
100 % |
| Max. electrical power consumption |
26.7 W |
| Residual ripple |
10 % |
| Signal range, analogue output |
4 - 20 mA |
| Signal range, analogue input |
0 - 10 V |
| SETPOINT/ACTUAL values |
Voltage type 0 - 10 V |
| Operating medium |
Compressed air in accordance with ISO8573-1:2010 [7:4:4]
Inert gases |
| Note on operating and pilot medium |
Lubricated operation not possible |
| KC mark |
KC-EMV |
| CE mark (see declaration of conformity) |
to EU directive for EMC |
| Corrosion resistance classification CRC |
2 - Moderate corrosion stress |
| Medium temperature |
5 ... 50 °C |
| Protection class |
IP65 |
| Ambient temperature |
5 ... 50 °C |
| Product weight |
1,100 g |
| Linearity error in ± %FS |
0.5 %FS |
| Temperature coefficient |
0.04 %/K |
| Repetition accuracy in ± %FS |
0.5 %FS |
| Diagnosis interface electrical connection |
Socket, M12, 5-pin, A-coded |
| Electrical connection IN |
Plug, M12, 5-pin, A-coded |
| Electrical connection OUT |
Plug, M12, 5-pin, A-coded |
| Mounting type |
with through hole |
| Pneumatic connection, port 1 |
Flange
G1/4 |
| Pneumatic connection, port 2 |
Flange |
| Pneumatic connection, port 3 |
Flange |
| Materials note |
Conforms to RoHS |
| Material housing |
Wrought Aluminium alloy
Anodised |
