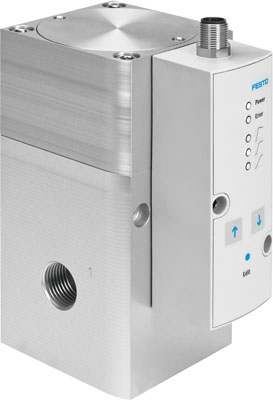

Feature |
Value |
| Nominal diameter, pressurisation |
12 mm |
| Nominal diameter, exhaust |
12 mm |
| Type of actuation |
electrical |
| Sealing principle |
soft |
| Assembly position |
Any |
| Design structure |
Pilot actuated diaphragm regulator |
| Short circuit strength |
for all electrical connections |
| Safety instructions |
VPPM safety position: If the power supply cable is interrupted, output pressure is maintained unregulated. |
| Polarity protected |
for all electrical connections |
| Type of reset |
mechanical spring |
| Type of piloting |
Piloted |
| Valve function |
3-way proportional-pressure regulator |
| Type of display |
LED |
| Pressure regulation range |
0.06 ... 6 bar |
| Inlet pressure 1 |
0 ... 8 bar |
| Max. pressure hysteresis |
0.03 bar |
| Standard nominal flow rate |
4,500 l/min |
| Operating voltage range DC |
21.6 ... 26.4 V |
| Max. current consumption |
500 mA |
| Duty cycle |
100 % |
| Max. electrical power consumption |
12 W |
| Residual ripple |
10 % |
| Switch output |
PNP |
| Signal range, analogue output |
4 - 20 mA |
| Signal range, analogue input |
4 - 20 mA |
| Operating medium |
Compressed air in accordance with ISO8573-1:2010 [7:4:4]
Inert gases |
| Note on operating and pilot medium |
Lubricated operation not possible |
| Authorisation |
RCM Mark
c UL us - Listed (OL) |
| KC mark |
KC-EMV |
| CE mark (see declaration of conformity) |
to EU directive for EMC |
| Corrosion resistance classification CRC |
2 - Moderate corrosion stress |
| Medium temperature |
10 ... 50 °C |
| Protection class |
IP65 |
| Ambient temperature |
0 ... 60 °C |
| Product weight |
2,050 g |
| Linearity error, FS |
1 % |
| Temperature coefficient |
0.04 %/K |
| FS repetition accuracy |
0.5 % |
| Electrical connection |
8-pin
M12
Plug |
| Mounting type |
with through hole
with accessories
Optional |
| Pneumatic connection, port 1 |
G1/2 |
| Pneumatic connection, port 2 |
G1/2 |
| Pneumatic connection, port 3 |
G1/2 |
| Materials note |
Conforms to RoHS |
| Material housing |
Wrought Aluminium alloy
Anodised |
