Data sheet:

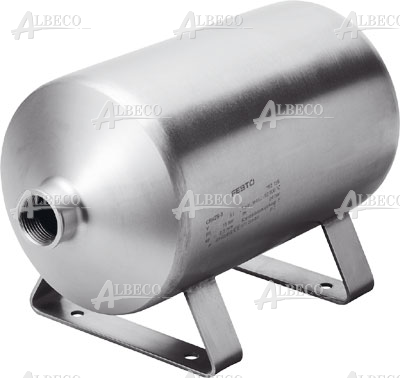

Name: CRVZS-10 FESTO
Rating: 4.8 (6 reviews)

Feature	Value
Volume	10 l
Assembly position	Downward condensate drain
Conforms to standard	AD 2000 reference sheet
Operating pressure MPa	-0.095 ... 1.6 MPa
Operating pressure	-0.95 ... 16 bar -13.78 ... 232 psi
Authorisation	CRN TÜV
CE mark (see declaration of conformity)	to EU directive pressure devices
Certificate issuing department	CRN0H15669.5C
Operating medium	Compressed air in accordance with ISO8573-1:2010 [-:-:-] Nitrogen
Corrosion resistance classification CRC	3 - High corrosion stress
Food-safe	See Supplementary material information
Medium temperature	-10 ... 100 °C
Ambient temperature	-10 ... 100 °C
Max. tightening torque, connecting thread	130 Nm
Max. tightening torque, condensate drain	27 Nm
Product weight	6,459 g
Mounting type	with through hole
Condensate drain connection	G3/8
Pneumatic connection	G1
Materials note	Free of copper and PTFE Conforms to RoHS
Material of air reservoir	High alloy steel, non-corrosive

manufacturer	FESTO
dimensions	0 x 0 x 0
Weight	6.061 kg
working pressure [bar]	-0,95÷16
thread	G 1
type	air reservoir
product feature	stainless steel
country of origin	Germany
working medium	Azot, sprężone powietrze wg ISO8573-1:2010 [-:-:-]
