Data sheet:

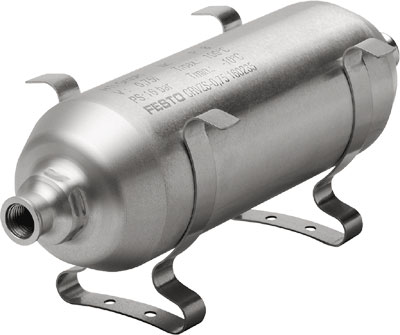

Name: CRVZS-0.75 FESTO
Rating: 4.8 (3 reviews)

Feature	Value
Volume	0,75 l
Assembly position	Any
Conforms to standard	AD 2000 reference sheet
Operating pressure MPa	-0.095 ... 1.6 MPa
Operating pressure	-0.95 ... 16 bar -13.78 ... 232 psi
Authorisation	CRN TÜV
Certificate issuing department	TSSACRN0H17477.5C
Operating medium	Compressed air in accordance with ISO8573-1:2010 [-:-:-] Nitrogen
Corrosion resistance classification CRC	3 - High corrosion stress
Food-safe	See Supplementary material information
Medium temperature	-10 ... 100 °C
Ambient temperature	-10 ... 100 °C
Max. tightening torque, connecting thread	23 Nm
Product weight	736 g
Mounting type	Fixing clips
Pneumatic connection	G1/4
Materials note	Free of copper and PTFE Conforms to RoHS
Material of air reservoir	High alloy steel, non-corrosive
Material fixing clips	High alloy steel, non-corrosive

manufacturer	FESTO
dimensions	0 x 0 x 0
Weight	0.76 kg
working pressure [bar]	-0,95÷16
thread	G 1/4
type	air reservoir
product feature	stainless steel
country of origin	Germany
working medium	Azot, sprężone powietrze wg ISO8573-1:2010 [-:-:-]

Technical materials
