You are here: Pneumatics and hydraulics Connectors and adapters NPQP-L-R18-Q4-FD-P10 FESTO

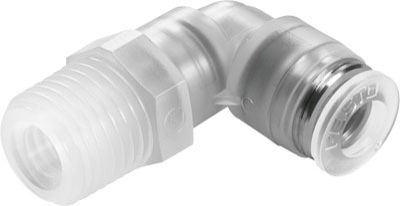

Elbow connector

NPQP-L-R18-Q4-FD-P10 FESTO

Name: NPQP-L-R18-Q4-FD-P10 FESTO
Rating: 4.5 (15 reviews)

133051 FESTO 133051 FESTO

Plewiska (20)

on stock

Details Attributes

NPQP-L-R18-Q4-FD-P10 FESTO

Elbow connector

Feature	Value
Size	Standard
Nominal size	2.1 mm
Design structure	Push/pull principle
Temperature dependent operating pressure	-0.95 ... 10 bar
Operating medium	Compressed air in accordance with ISO8573-1:2010 [7:-:-]
Note on operating and pilot medium	Lubricated operation possible
Corrosion resistance classification CRC	4 - Very high corrosion stress
Food-safe	See Supplementary material information
Ambient temperature	-20 ... 60 °C
Product weight	4 g
Pneumatic connection, port 1	R1/8
Pneumatic connection, port 2	For tubing outside diameter 4 mm
Materials note	Contains PWIS substances Conforms to RoHS
Material housing	PP
Material of tube retaining claw	High alloy steel, non-corrosive
