You are here: Pneumatics and hydraulics Connectors and adapters CN-M3-PK-3 FESTO

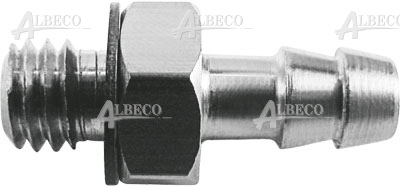

Straight connector

CN-M3-PK-3 FESTO

Name: CN-M3-PK-3 FESTO
Rating: 4.7 (9 reviews)

15872 FESTO 15872 FESTO

Details Attributes

CN-M3-PK-3 FESTO

Straight connector

Feature	Value
Nominal size	1.5 mm
Type of seal on screw-in stud	Sealing ring
Operating pressure complete temperature range	-0.95 ... 10 bar
Operating medium	Compressed air in accordance with ISO8573-1:2010 [7:-:-]
Note on operating and pilot medium	Lubricated operation possible (subsequently required for further operation)
Ambient temperature	0 ... 60 °C
Pneumatic connection, port 1	Male thread M3
Pneumatic connection, port 2	For tubing outside diameter 4 mm
Materials note	Conforms to RoHS
Material housing	High alloy steel
