You are here: Pneumatics and hydraulics Connectors and adapters N-1/4-P-9 FESTO

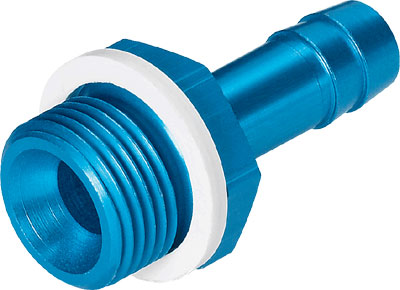

Straight connector

N-1/4-P-9 FESTO

Name: N-1/4-P-9 FESTO
Rating: 4.5 (13 reviews)

3607 FESTO 3607 FESTO

Details Attributes

N-1/4-P-9 FESTO

Straight connector

Feature	Value
Nominal size	6.5 mm
Type of seal on screw-in stud	Sealing ring
Operating pressure complete temperature range	-0.95 ... 16 bar
Operating medium	Compressed air in accordance with ISO8573-1:2010 [7:-:-]
Note on operating and pilot medium	Lubricated operation possible (subsequently required for further operation)
Corrosion resistance classification CRC	2 - Moderate corrosion stress
Pneumatic connection, port 1	Male thread G1/4
Pneumatic connection, port 2	For tubing internal diameter 9mm
Materials note	Conforms to RoHS
