Suitable with manifolds having one to six ports to match number of lubrication points.
Provides flexible options for systems with remote single lubrication points or multiple-port metering devices with up to six ports.
Select optional push-in or screw-in type metering nipples for feed line connections via order code.
Choose separately manifold models with different thread sizes for main line connection and materials.
Current metering nipples above 0,03 cm³ are exchangeable to yield different output quantities.

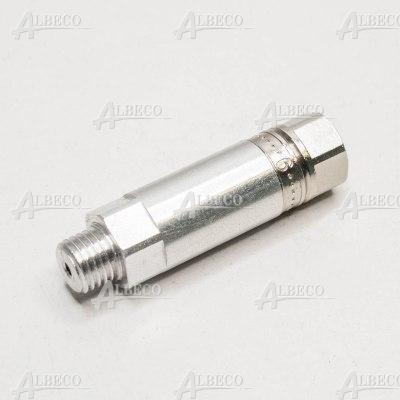

Developed for installation in manifolds, series 341 single-port, pre-lubrication metering devices are suitable for use with single-line, centralized lubrication systems for oil and fluid grease.
The combination of these metering devices with one- to six-port manifolds provides flexible options for lubrication system design.
Manifolds customized for product series 341 are available in aluminum and stainless steel.
| manufacturer |
SKF |
| dimensions |
0 x 0 x 0 |
| Weight |
0.02 kg |
| working pressure [bar] |
6÷80 bar
|
| sealing material |
NBR
|
| operating temp. |
0÷80°C
|
| type |
pumping element
|
| used with |
fluid grease NLGI 00, 000
|
| application |
Machine tools
Printing machines
Packaging industry
Textile industry
|
| additional description |
Pre-lubrication metering devices for use in single-line lubrication systems
|
| country of origin |
|
| metering quantity |
0,06cm³
|
| connection outlet |
ø4mm solderless pipe connection
|
