Name: PHF FX40-35X60 SKF
Rating: 4.9 (6 reviews)

PHF FX40-35X60 SKF

dimensions

35 x 60 x 29

Weight

0.5 kg

clamping screw

country of origin

D [mm]

d [mm]

feature

axial displacement when tightening screws

H1 [mm]

H2 [mm]

L [mm]

45.97

material

carbon steel C45 / 1.0503 / AISI1045

mounting holes number

product feature

self-centering

Details Attributes Substitutes (1)

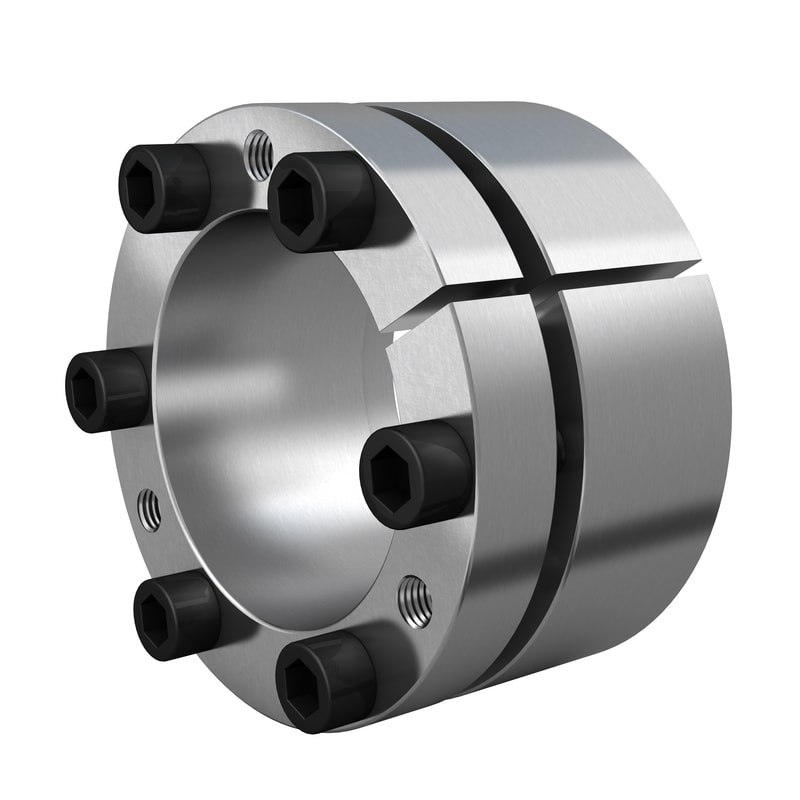

PHF FX40-35X60 SKF

Clamping element, self-centering

FX keyless bushing, FX40
Bushings and hubs are available in many variants, offering specific benefits in power transmission applications ranging from automotive to papermaking. FX40 keyless bushings are designed to attach components to shafts using a 360-degree interference fit. With no keyway required, the shaft size can usually be reduced and only minimal machining is required. Installation is as simple as sliding the bushing into place and tightening it with the clamp screws.

Manufactured according to established market standards
Available in a wide range of metric and imperial bore sizes
Easily installed and removed using basic tools
True zero backlash
Reduced machining and material costs

manufacturer	SKF
dimensions	35 x 60 x 29
Weight	0.5 kg
feature	axial displacement when tightening screws
d [mm]	35
D [mm]	60
H1 [mm]	29
H2 [mm]	26
mounting holes number	9
L [mm]	45.97
material	carbon steel C45 / 1.0503 / AISI1045
type	clamping element
product feature	self-centering
country of origin
clamping screw	M6
