Name: PHP 4SPB630TB SKF
Rating: 4.7 (2 reviews)

PHP 4SPB630TB SKF

dimensions

0 x 630 x 0

Weight

44.5 kg

country of origin

ds [mm]

dw [mm]

630

D [mm]

637

execution

H [mm]

170

L [mm]

material

cast iron G3000

number of grooves

profile

SPB

Q [mm]

Details Attributes Substitutes (2)

PHP 4SPB630TB SKF

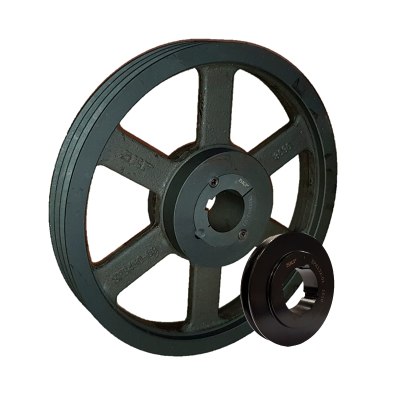

V-belt pulley

Wedge belt pulley, taper bushed
Wedge belt pulleys are designed to be used with wedge belts. They are available with one or several grooves, enabling multiple belts to run in parallel. The pulleys are easily mounted on the shafts using the appropriate taper bushings.

Manufactured according to international standards
Phosphate-coated for corrosion resistance
Statically balanced (dynamic balancing available on request)
Superior quality can enhance belt life and reduce total cost of ownership of the machinery

manufacturer	SKF
dimensions	0 x 630 x 0
Weight	44.5 kg
D [mm]	637
dw [mm]	630
H [mm]	170
number of grooves	4
L [mm]	89
material	cast iron G3000
Q [mm]	90
type	v-belt pulley
used with	Taper Lock 3535
execution	4
profile	SPB
ds [mm]	35
U [mm]	587
