Name: PHS 08B-1TBH22 SKF
Rating: 4.6 (7 reviews)

PHS 08B-1TBH22 SKF

dimensions

14 x 0 x 25

Weight

0.47 kg

country of origin

China

Dm [mm]

Dp - pitch diameter [mm]

89.24

D [mm]

96.01

d [mm]

execution

L [mm]

material

carbon steel C45 / 1.0503 / AISI1045

number of teeth

p [mm]

12.7

Q [mm]

Details Attributes Substitutes (1)

PHS 08B-1TBH22 SKF

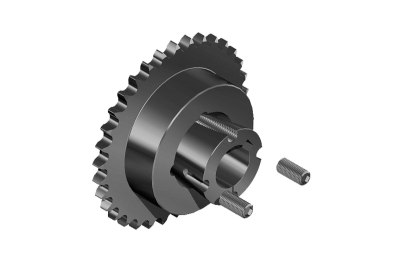

Single row sprocket

Simplex taper bushed sprocket with single hub, European standards (EN)
Sprockets are available in many sizes, to fit a variety of design solutions. These simplex sprockets have a taper bush and hub profile on one side of the sprocket to connect to the shaft. With a comprehensive range, you can easily find the correct sprocket size for your application. As standard, all sprockets are made from high-quality steels and have a black oxide coating, and sizes up to and including 25 tooth have hardened teeth.

Manufactured according to international global standards
Made from high-grade steel and carbon steel

manufacturer	SKF
dimensions	14 x 0 x 25
Weight	0.47 kg
d [mm]	14
D [mm]	96.01
Dm [mm]	76
Dp - pitch diameter [mm]	89.24
number of teeth	22
L [mm]	25
material	carbon steel C45 / 1.0503 / AISI1045
p [mm]	12.7
Q [mm]	42
tooth hardness [HRC]	35÷40
type	single row sprocket
used with	Taper Lock 1610
execution	B
country of origin	China

Technical materials

Product's substitutes

08B-1, z=22 TL1610

Single row sprocket

0 x 94.1 x 28
