You are here: Bearings Spherical plain bearings and rod ends Rod ends EF 40-60-501 DURBAL

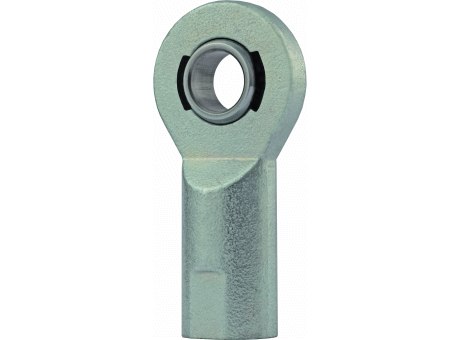

Stainless steel rod end

EF 40-60-501 DURBAL

Name: EF 40-60-501 DURBAL
Rating: 4.7 (10 reviews)

dimensions	40 x 0 x 0
Weight	2.264 kg
A - rod end outer diameter [mm]	92
C - outer ring width [mm]	22
clearence	0÷10 µm
country of origin
Dynamic load rating [N]	86000
d [mm]	40
F - height to the axis [mm]	145
friction pair	stainless steel/PTFE composite
GL - thread length [mm]	71
inner ring width [mm]	28
L - rod head height [mm]	191

Attributes Substitutes (1)

EF 40-60-501 DURBAL

Stainless steel rod end

manufacturer	DURBAL
dimensions	40 x 0 x 0
Weight	2.264 kg
A - rod end outer diameter [mm]	92
inner ring width [mm]	28
C - outer ring width [mm]	22
d [mm]	40
F - height to the axis [mm]	145
GL - thread length [mm]	71
thread	M42x3
L - rod head height [mm]	191
clearence	0÷10 µm
norm	DIN ISO 12240-4 & DIN ISO 8139 serie E
friction pair	stainless steel/PTFE composite
type	stainless steel rod end
Dynamic load rating [N]	86000
static load rating [N]	100200
product line	Classic line
max. tilt angle [°]	7
country of origin
thread 2	internal thread, right
