You are here: Bearings Spherical plain bearings and rod ends Rod ends EMA 17-60-501 DURBAL

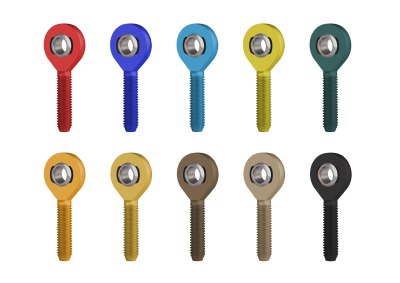

Rod end, aluminium

EMA 17-60-501 DURBAL

Name: EMA 17-60-501 DURBAL
Rating: 4.7 (10 reviews)

dimensions	17 x 0 x 0
Weight	0.05 kg
A - rod end outer diameter [mm]	44
C - outer ring width [mm]	10
clearence	0÷10 µm
country of origin
Dynamic load rating [N]	16300
d [mm]	17
F - height to the axis [mm]	69
friction pair	stainless steel/PTFE composite
GL - thread length [mm]	40
inner ring width [mm]	14
L - rod head height [mm]	91

Attributes

EMA 17-60-501 DURBAL

Rod end, aluminium

manufacturer	DURBAL
dimensions	17 x 0 x 0
Weight	0.05 kg
A - rod end outer diameter [mm]	44
inner ring width [mm]	14
C - outer ring width [mm]	10
d [mm]	17
F - height to the axis [mm]	69
GL - thread length [mm]	40
thread	M16
L - rod head height [mm]	91
clearence	0÷10 µm
norm	DIN ISO 12240-4 serie E
friction pair	stainless steel/PTFE composite
type	rod end
product feature	aluminium
Dynamic load rating [N]	16300
static load rating [N]	27500
product line	Classic line
max. tilt angle [°]	10
country of origin
thread 2	external thread, right
