You are here: Bearings Spherical plain bearings and rod ends Rod ends EMN 15-20-501 DURBAL

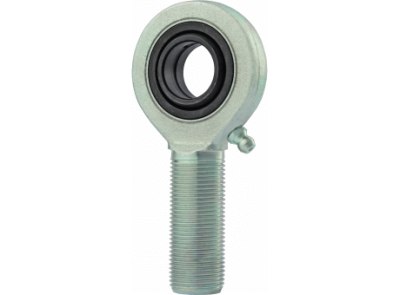

Rod end

EMN 15-20-501 DURBAL

dimensions	15 x 0 x 0
Weight	0.11 kg

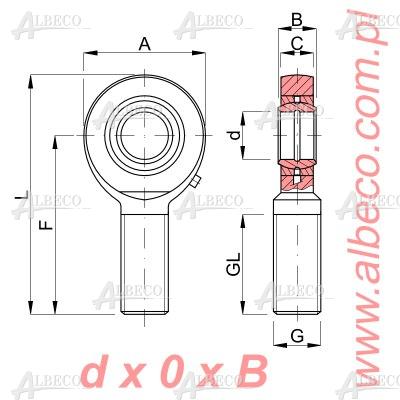

A - rod end outer diameter [mm]	38
C - outer ring width [mm]	9
clearence	40÷82 µm
country of origin
Dynamic load rating [N]	13400
d [mm]	15
F - height to the axis [mm]	63
friction pair	steel/steel
GL - thread length [mm]	36
inner ring width [mm]	12
L - rod head height [mm]	82

DURBAL

Attributes Substitutes (4)

EMN 15-20-501 DURBAL

Rod end

Log in to ask for price and availability

manufacturer	DURBAL
dimensions	15 x 0 x 0
Weight	0.11 kg
A - rod end outer diameter [mm]	38
inner ring width [mm]	12
C - outer ring width [mm]	9
d [mm]	15
F - height to the axis [mm]	63
GL - thread length [mm]	36
thread	M14
L - rod head height [mm]	82
clearence	40÷82 µm
norm	DIN ISO 12240-4 serie E
friction pair	steel/steel
type	rod end
sealing	none
Dynamic load rating [N]	13400
static load rating [N]	36000
product line	Classic line
max. tilt angle [°]	8
country of origin
thread 2	external thread, right

Technical materials

catalog

Product's substitutes

DSA 15 ES DURBAL

DSA 15 ES DURBAL

Rod end

15 x 0 x 12

in stock

Plewiska: 5 pcs

Log in to see prices

EA 15 FLURO

EA 15 FLURO

Rod end

15 x 0 x 0

in stock

Olsztyn: 6 pcs

Log in to see prices

GAR15-DO INA

GAR15-DO INA

Rod end

15 x 0 x 12

in stock

Plewiska: 11 pcs

Log in to see prices

SA 15 ES SKF

SA 15 ES SKF

Rod end

15 x 0 x 0

in stock

Plewiska: 2 pcs

Log in to see prices
