You are here: Bearings Ball bearings Angular contact ball bearings XC7006-C-T-P4S-UL FAG

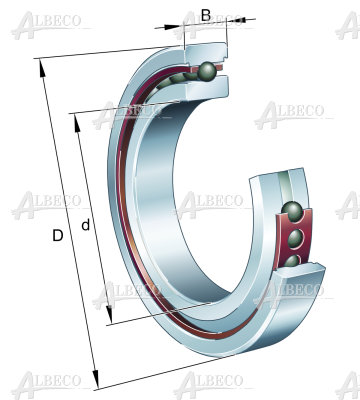

Single row angular-contact ball bearing, stainless steel, high precision bearing

XC7006-C-T-P4S-UL FAG

Name: XC7006-C-T-P4S-UL FAG
Rating: 4.6 (14 reviews)

dimensions	30 x 55 x 13
Weight	0.11 kg
bearing arrangement	for universal matching
cage	textolite, outer ring centred
contact angle [°]	15
country of origin
Dynamic load rating [N]	12600
limiting/attainable speed, grease [rpm]	32000
limiting/attainable speed, oil [rpm]	85000
precision	better than P4
preload	light preload
product feature	stainless steel
product feature	high precision bearing

Attributes

XC7006-C-T-P4S-UL FAG

Single row angular-contact ball bearing, stainless steel, high precision bearing

manufacturer	FAG
dimensions	30 x 55 x 13
Weight	0.11 kg
type	single row angular-contact ball bearing
sealing	none
product feature	stainless steel
product feature	high precision bearing
Dynamic load rating [N]	12600
static load rating [N]	4050
contact angle [°]	15
cage	textolite, outer ring centred
preload	light preload
bearing arrangement	for universal matching
precision	better than P4
country of origin
limiting/attainable speed, oil [rpm]	85000
limiting/attainable speed, grease [rpm]	32000
rolling element material	small ceramic balls
rings material	Cronidur 30
