You are here: Power transmission Drive belts and pulleys Timing belts and pulleys 690-S5M-15 TOP DRIVE STD SIT

Timing belt, TOP DRIVE STD

690-S5M-25 TOP DRIVE STD SIT

CST690S5M25 SIT CST690S5M25 SIT
Weight 0.075 kg
country of origin

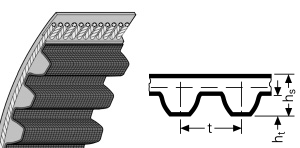

hs - belt thickness [mm] 3.4
ht - tooth height [mm] 1.9
Ld=Lp=Lw - pitch length [mm] 690
material chloroprene
number of teeth 138
product feature top drive std
profile S5M
t -pitch [mm] 5
tensile cord fiberglass
type timing belt

690-S5M-25 TOP DRIVE STD SIT

Timing belt, TOP DRIVE STD

manufacturer SIT
dimensions 0 x 0 x 0
Weight 0.075 kg
hs - belt thickness [mm] 3.4
ht - tooth height [mm] 1.9
number of teeth 138
Ld=Lp=Lw - pitch length [mm] 690
material chloroprene
t -pitch [mm] 5
type timing belt
profile S5M
product feature top drive std
tensile cord fiberglass
country of origin
