You are here: Linear motion Linear guides and carriages Profile guides and carriages TKVD25-U-G3 /0235, 18-37 INA

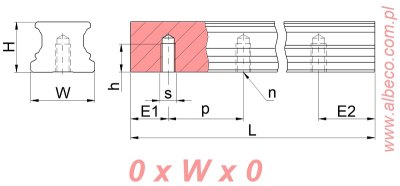

Rail with threaded holes (operating temp.: -10÷100°C)

TKVD25-U-G3 /1437, 37-80 INA

dimensions 0 x 23 x 0
Weight 3.88 kg
country of origin France
H [mm] 18.7
h [mm] 12
material induction hardened steel
number of raceways 4
operating temp. -10÷100°C
p - pitch [mm] 60.0
precision high accuracy
rail size 25
screw (min. lenght) ISO4762, M6x12-12.9
type rail with threaded holes

TKVD25-U-G3 /1437, 37-80 INA

Rail with threaded holes (operating temp.: -10÷100°C)

manufacturer INA
dimensions 0 x 23 x 0
Weight 3.88 kg
h [mm] 12
H [mm] 18.7
number of raceways 4
material induction hardened steel
p - pitch [mm] 60.0
rail size 25
screw (min. lenght) ISO4762, M6x12-12.9
operating temp. -10÷100°C
type rail with threaded holes
W [mm] 23
precision high accuracy
country of origin France
