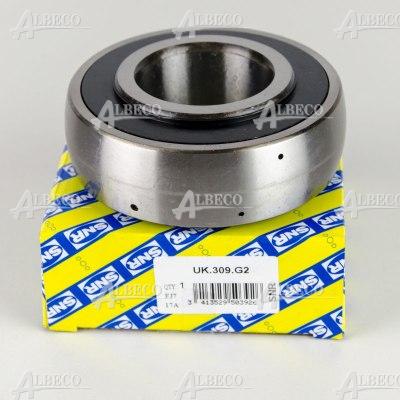

Insert ball bearing with conical hole

UK309G2 SNR

Name: UK309G2 SNR
Rating: 4.6 (1 reviews)

dimensions	45 x 100 x 38
Weight	1.056 kg
C - outer ring width (insert bearing) [mm]	30
cage	steel
clearence	C3 - greater than normal
country of origin	China
Dynamic load rating [N]	53000
D [mm]	100
d [mm]	45
inner ring width [mm]	38
rounded outer ring	yes
sealing	double-sided lip seal covered with a steel sheet washers with outer flinger shield with corrosion protection.
static load rating [N]	31800

Plewiska (20)

on stock

Attributes Substitutes (1)

UK309G2 SNR

Insert ball bearing with conical hole

manufacturer	SNR
dimensions	45 x 100 x 38
Weight	1.056 kg
inner ring width [mm]	38
C - outer ring width (insert bearing) [mm]	30
d [mm]	45
D [mm]	100
clearence	C3 - greater than normal
type	insert ball bearing with conical hole
sealing	double-sided lip seal covered with a steel sheet washers with outer flinger shield with corrosion protection.
used with	H2309
rounded outer ring	yes
Dynamic load rating [N]	53000
static load rating [N]	31800
cage	steel
taper	taper 1:12
country of origin	China
