You are here: Bearings Ball bearings Angular contact ball bearings 7205CG1UJ74 SNR
7205CG1UJ74
7205CG1UJ74
7205CG1UJ74
7205CG1UJ74

Single row angular-contact ball bearing, high precision bearing

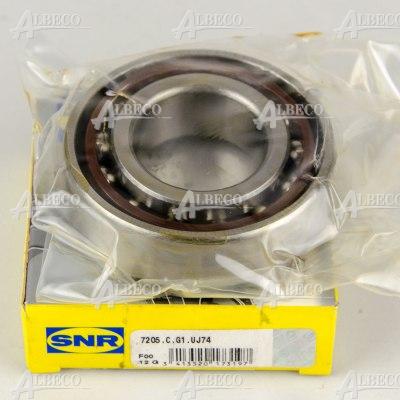

7205CG1UJ74 SNR

dimensions 25 x 52 x 15
Weight 0.11 kg
bearing arrangement for universal matching
cage textolite, outer ring centred
contact angle [°] 15
Dynamic load rating [N] 17500
precision P4: better than P5
preload light preload
product feature high precision bearing
rolling element material big steel balls
sealing none
static load rating [N] 11100
type single row angular-contact ball bearing
Log in to ask for price and availability
Attributes Substitutes (16)

7205CG1UJ74 SNR

Single row angular-contact ball bearing, high precision bearing

Attributes
manufacturer SNR
dimensions 25 x 52 x 15
Weight 0.11 kg
type single row angular-contact ball bearing
sealing none
product feature high precision bearing
Dynamic load rating [N] 17500
static load rating [N] 11100
contact angle [°] 15
cage textolite, outer ring centred
preload light preload
bearing arrangement for universal matching
precision P4: better than P5
rolling element material big steel balls

Technical materials

Product's substitutes
Product
dimensions
availability
Net price
7205 CD/P4ADGA SKF

7205 CD/P4ADGA SKF

 Single row angular-contact ball bearing, high precision ball bearings set, (two pcs)

25 x 52 x 15

in stock

Plewiska: 1 pair

Log in to see prices
7205 CDGA/P4A SKF

7205 CDGA/P4A SKF

 Single row angular-contact ball bearing, high precision bearing

25 x 52 x 15

in stock

Plewiska: 10 pcs

2 weeks: 5 pcs

Log in to see prices
7205 CDGA/P4AW64 SKF

7205 CDGA/P4AW64 SKF

 Single row angular-contact ball bearing, high precision bearing

25 x 52 x 15
7205CG/GNP4 NTN

7205CG/GNP4 NTN

 Single row angular-contact ball bearing, high precision bearing

25 x 52 x 15

in stock

Plewiska: 2 pcs

2 weeks: 12 pcs

Log in to see prices
7205CTRSULP3 NSK

7205CTRSULP3 NSK

 Single row angular-contact ball bearing, high precision bearing

25 x 52 x 15

in stock

Plewiska: 13 pcs

Log in to see prices
7205CYDU/GL P4 NACHI

7205CYDU/GL P4 NACHI

 Single row angular-contact ball bearing, high precision ball bearings set, (two pcs)

25 x 52 x 15
7205 CYU/GL P4 NACHI

7205 CYU/GL P4 NACHI

 Single row angular-contact ball bearing, high precision bearing

25 x 52 x 15
B7205-C-T-P4S-DUL FAG

B7205-C-T-P4S-DUL FAG

 Single row angular-contact ball bearing, high precision ball bearings set, (two pcs)

25 x 52 x 15
B7205-C-T-P4S-K5-UL FAG

B7205-C-T-P4S-K5-UL FAG

 Single row angular-contact ball bearing, high precision bearing

25 x 52 x 15
B7205-C-T-P4S-UL CSC

B7205-C-T-P4S-UL CSC

 Single row angular-contact ball bearing, high precision bearing

25 x 52 x 15

in stock

Plewiska: 3 pcs

Log in to see prices
B7205-C-T-P4S-UL FAG

B7205-C-T-P4S-UL FAG

 Single row angular-contact ball bearing, high precision bearing

25 x 52 x 15

in stock

Plewiska: 33 pcs

Log in to see prices
HY S6205 C TA P4+ DUL GMN

HY S6205 C TA P4+ DUL GMN

 Single row angular-contact ball bearing, high precision ball bearings set, (two pcs)

25 x 52 x 15

in stock

Plewiska: 3 pair

Log in to see prices
S6205 C TA P4+ DUL GMN

S6205 C TA P4+ DUL GMN

 Single row angular-contact ball bearing, high precision ball bearings set, (two pcs)

25 x 52 x 15

in stock

Plewiska: 6 pair

Log in to see prices
S6205 C TA P4+ UL GMN

S6205 C TA P4+ UL GMN

 Single row angular-contact ball bearing, high precision bearing

25 x 52 x 15

in stock

Plewiska: 10 pcs

Log in to see prices
HY S6205 C TA P4+ UL GMN

HY S6205 C TA P4+ UL GMN

 Single row angular-contact ball bearing, high precision bearing

25 x 52 x 15
S6205 C TXM P4+ DUL GMN

S6205 C TXM P4+ DUL GMN

 Single row angular-contact ball bearing, high precision ball bearings set, (two pcs)

25 x 52 x 15

in stock

Plewiska: 5 pair

Olsztyn: 2 pair

Log in to see prices
