Name: 343-400-22200-ZZ SKF
Rating: 4.6 (5 reviews)

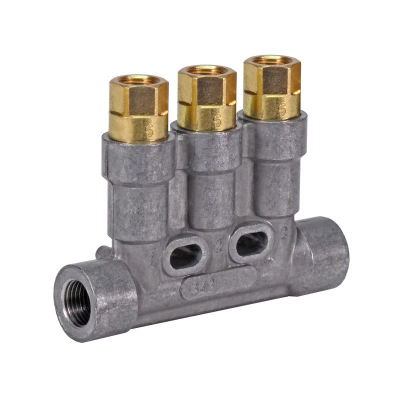

343-400-22200-ZZ SKF

Weight

0.129 kg

additional description

Pre-lubrication metering devices for use in single-line lubrication systems

application

Machine tools Printing machines Packaging industry Textile industry

connection outlet

ø4mm solderless pipe connection

country of origin

Germany

metering quantity

0,03cm³

operating temp.

0÷80°C

sealing material

NBR

type

single line distributor

used with

mineral and synthetic oil

working pressure [bar]

6÷80 bar

Details Attributes

343-400-22200-ZZ SKF

Single line distributor (operating temp.: 0÷80°C)

Designed for installation directly on the machine/system requiring lubrication.
Select optional push-in or screw-in type metering nipples for feed line connections.
Choose optional push-in or screw-in type main line fittings.
Metering nipples above 0,03 cm³ are exchangeable to yield different output quantities.
Offered in two-, three- and five-port models, series 340 metering devices were developed for use with single-line, centralized lubrication systems for oil and fluid grease.
These metering devices are designed for installation directly on the machine/system requiring lubrication.
Series 340 metering devices can be ordered with fittings for the main line connection by selecting the appropriate order code

Attributes

manufacturer	SKF
dimensions	0 x 0 x 0
Weight	0.129 kg
working pressure [bar]	6÷80 bar
sealing material	NBR
operating temp.	0÷80°C
type	single line distributor
used with	mineral and synthetic oil
application	Machine tools Printing machines Packaging industry Textile industry
additional description	Pre-lubrication metering devices for use in single-line lubrication systems
country of origin	Germany
metering quantity	0,03cm³
connection outlet	ø4mm solderless pipe connection
