Name: 620-40028-5 SKF
Rating: 4.7 (10 reviews)

620-40028-5 SKF

Weight

0 kg

additional description

Dual-line metering devices

application

• Steel plants • Cement plants • Mining excavators

connection inlet

G 3/8

connection outlet

G1/4

metering quantity

0÷2,2 cm3

operating temp.

max. +80°C

type

dual-line metering device

used with

grease up to NLGI 3, oil with a viscosity of min 20 mm2/s

working pressure [bar]

max. 400 bar

Details Attributes

620-40028-5 SKF

Dual-line metering device (operating temp.: max. +80°C)

Easy cross-porting with external screw to combine

Solid-block construction for durability and error-free exchange
Operates effectively in a wide range of temperatures
Easy to monitor

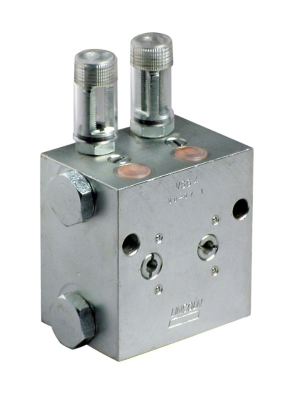

The durable, galvanized steel VSG metering devices are designed for dual-line systems with pressures of up to 400 bar (5 800 psi).
These metering devices are available with up to eight outlets, and each pair of outlets is equipped with an indicator pin for visual monitoring.
Also, the VSG metering devices are available with low-wear proximity switches, or piston detectors, for electrical monitoring (except VSG-D version).
Additional features include rust-resitant material or rust- and acid-resistant material

Attributes

manufacturer	SKF
dimensions	0 x 0 x 0
Weight	0 kg
working pressure [bar]	max. 400 bar
operating temp.	max. +80°C
type	dual-line metering device
used with	grease up to NLGI 3, oil with a viscosity of min 20 mm2/s
application	• Steel plants • Cement plants • Mining excavators
additional description	Dual-line metering devices
metering quantity	0÷2,2 cm3
connection inlet	G 3/8
connection outlet	G1/4
