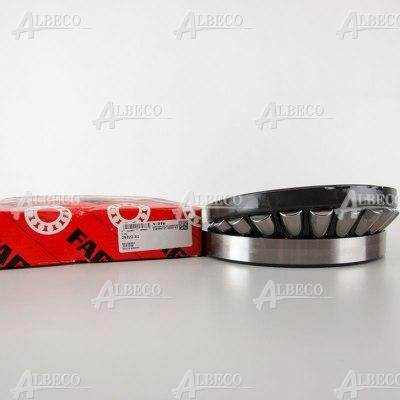

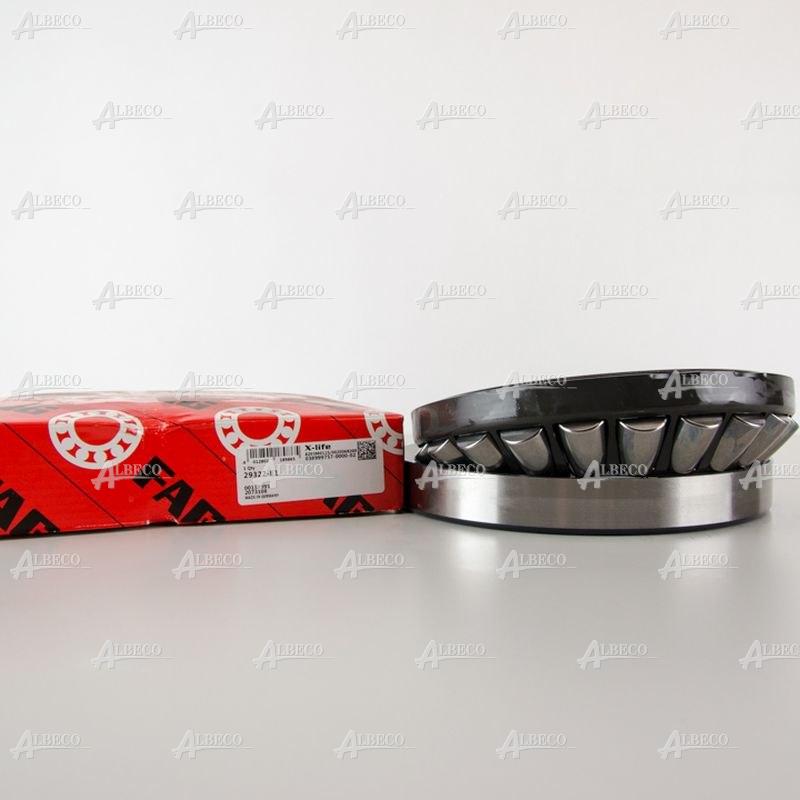

Name: 29322-E1-XL FAG
Rating: 4.9 (10 reviews)

29322-E1-XL FAG

dimensions

110 x 190 x 48

Weight

5.192 kg

cage

steel, guided by the rolling elements

country of origin

Germany

Dynamic load rating [N]

620000

limiting speed [rpm]

3750

operating temp.

-30÷200°C

reference speed [rpm]

1830

reinforced execution

yes

static load rating [N]

1760000

T1 - outer ring width [mm]

24.8

T3 - inner ring width [mm]

30.3

type

spherical roller thrust bearing

Attributes Substitutes (6)

29322-E1-XL FAG

Spherical roller thrust bearing (operating temp.: -30÷200°C)

manufacturer	FAG
dimensions	110 x 190 x 48
Weight	5.192 kg
T1 - outer ring width [mm]	24.8
T3 - inner ring width [mm]	30.3
operating temp.	-30÷200°C
type	spherical roller thrust bearing
reinforced execution	yes
Dynamic load rating [N]	620000
static load rating [N]	1760000
cage	steel, guided by the rolling elements
country of origin	Germany
limiting speed [rpm]	3750
reference speed [rpm]	1830
