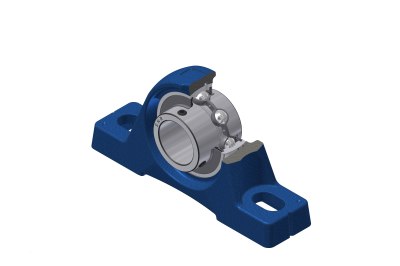

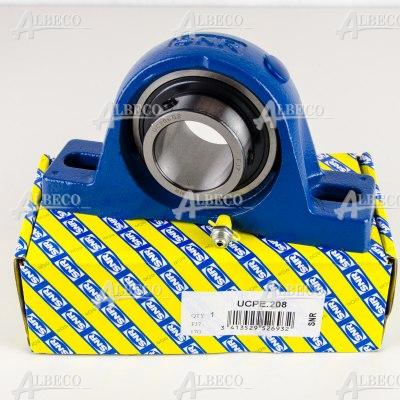

UCPE208 SNR
Cast iron bearing unit
manufacturer | SNR |
dimensions | 40 x 0 x 0 |
Weight | 1.983 kg |
A [mm] | 48 |
d [mm] | 40 |
F [mm] | 49.2 |
L [mm] | 179 |
clearence | C3 - greater than normal |
N [mm] | 14 |
type | cast iron bearing unit |
sealing | double-sided lip seal covered with a steel sheet washers with outer flinger shield with corrosion protection. |
N1 [mm] | 26 |
A1 [mm] | 30 |
J [mm] | 138 |
F2 [mm] | 99 |
Dynamic load rating [N] | 29600 |
static load rating [N] | 18200 |
cage | steel |
country of origin | China |
