You are here: Linear motion Linear guides and carriages Profile guides and carriages MGW09H-Z0-HM HIWIN

Linear recirculating ball bearing, stainless steel

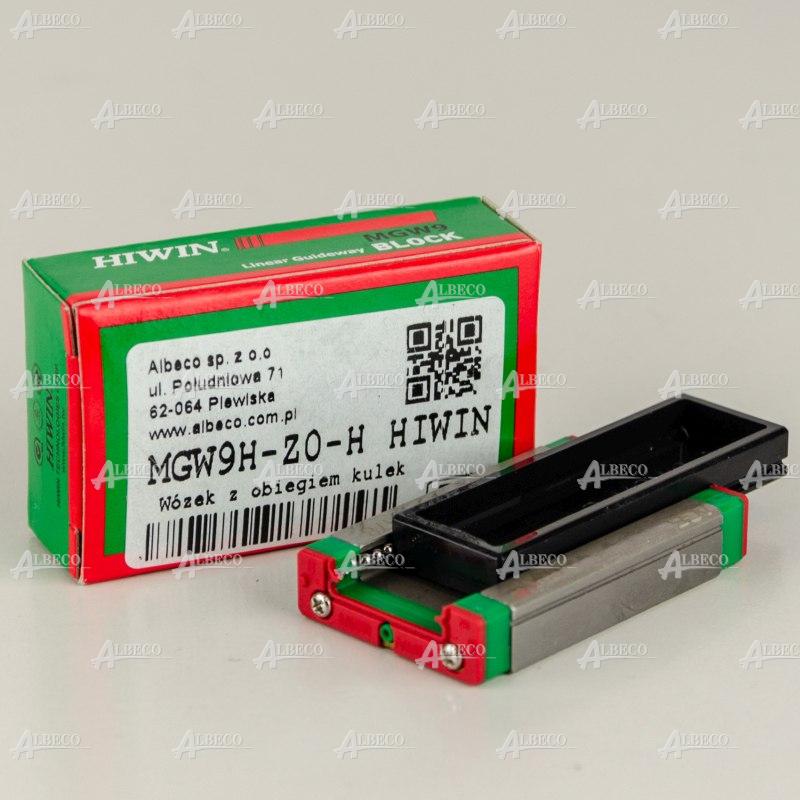

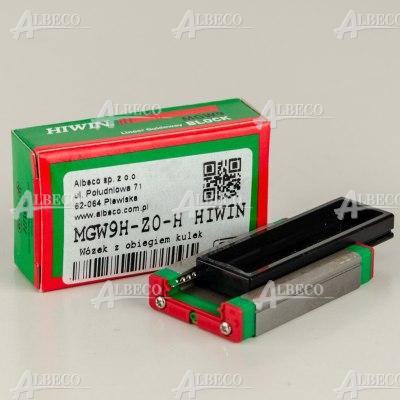

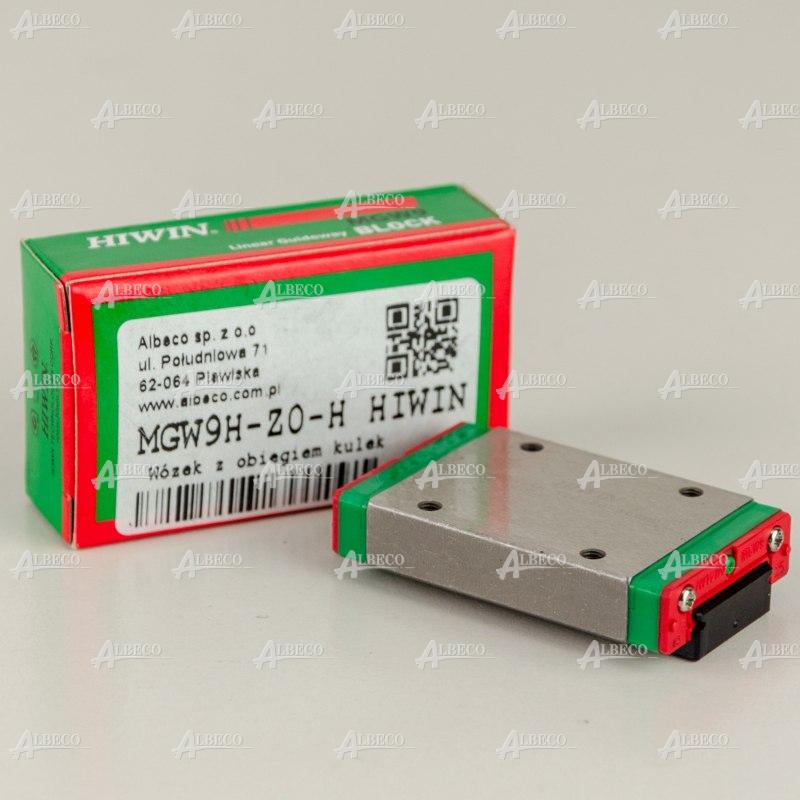

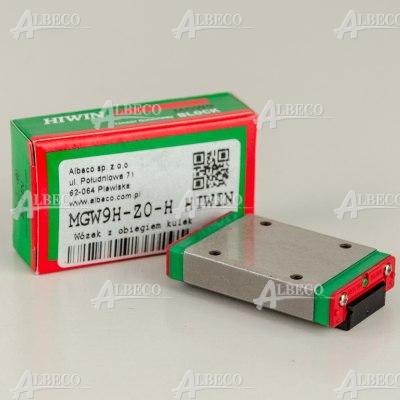

MGW09H-Z0-HM HIWIN

Name: MGW09H-Z0-HM HIWIN
Rating: 4.5 (4 reviews)

Plewiska (53)

on stock

Attributes Works with

MGW09H-Z0-HM HIWIN

Linear recirculating ball bearing, stainless steel

Attributes

manufacturer	HIWIN
dimensions	18 x 30 x 50.7
Weight	0.065 kg
L [mm]	50.7
L2 [mm]	30
rail size	9W
type	linear recirculating ball bearing
sealing	SS - standard sealing
W [mm]	18
J [mm]	23
K [mm]	24
F2 [mm]	12
product feature	stainless steel
cage	none
preload	zero preload
precision	high accuracy
country of origin	Taiwan
