You are here: Telescopic slides Telescopic slides DH3832-0045 ACCURIDE

Telescopic slide, anti-corrosion coating, extension 100%+ (operating temp.: -20÷70°C, load/pair: 50kg)

DH3832-0045 ACCURIDE

dimensions 45.7 x 12.7 x 450
Weight 1.41 kg
additional description Load rating 50kg if used for 80000 cycles with 450 mm wide drawer
cage stainless steel
cam adjustment 0
country of origin Mexico
extension length [mm] 457
flat mount no
front disconnect yes
load/pair [kg] 50
lock / hold hold in
material steel with anti-corrosion coating
mounting Breathing tabs to compensate variations in cabinet or drawer width
Plewiska (9)

on stock

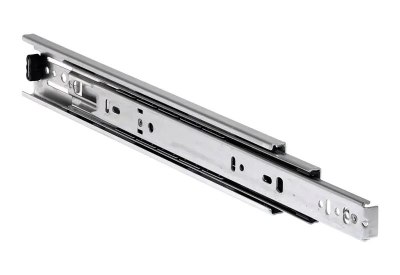

DH3832-0045 ACCURIDE

Telescopic slide, anti-corrosion coating, extension 100%+ (operating temp.: -20÷70°C, load/pair: 50kg)

Corrosion Resistant Telescopic Slide 450mm DH3832-0045

  • Corrosion resistant
  • Not suitable for flat mounting
  • Bright zinc finish for harsh environment - 96 h salt spray test
  • used for furniture cabinet hardware
Attributes
manufacturer ACCURIDE
dimensions 45.7 x 12.7 x 450
Weight 1.41 kg
slide length [mm] 450
extension length [mm] 457
material steel with anti-corrosion coating
mounting Breathing tabs to compensate variations in cabinet or drawer width
mounting Required side space 0.2mm to 0.5mm
mounting M4 screw (DIN 965)
mounting 4 mm wood screw (DIN 7997)
mounting euro screw 6 mm
flat mount no
load/pair [kg] 50
operating temp. -20÷70°C
type telescopic slide
lock / hold hold in
front disconnect yes
additional description Load rating 50kg if used for 80000 cycles with 450 mm wide drawer
product feature anti-corrosion coating
product feature extension 100%+
cage stainless steel
country of origin Mexico
rolling element material AISI 420C stainless (1.4034), ball hardness 35HRC
cam adjustment 0

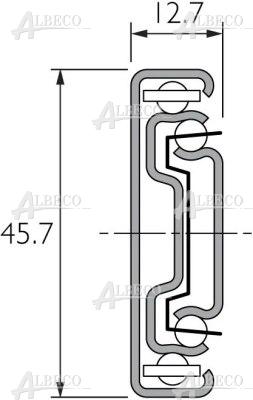

section [mm] 45,7x12,7
Product's substitutes
Product
dimensions
availability
Net price

DZ3832-0045 ACCURIDE

Telescopic slide, zinc plated, extension 100%+ (operating temp.: -20÷70°C, load/pair: 50kg)

45.7 x 12.7 x 450

in stock

Plewiska: 62 pair

2 weeks: 30 pair

DZ3832-0045DO ACCURIDE

Telescopic slide, zinc plated, extension 100%+ (operating temp.: -20÷70°C, load/pair: 50kg)

45.7 x 12.7 x 450

in stock

Plewiska: 58 pair

2 weeks: 30 pair
