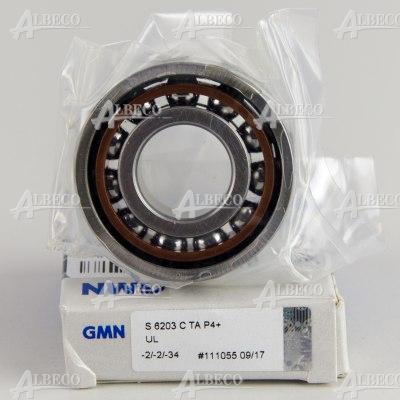

Name: S6203 C TA P4+ UL GMN
Rating: 4.8 (2 reviews)

S6203 C TA P4+ UL GMN

dimensions

17 x 40 x 12

Weight

0.068 kg

bearing arrangement

for universal matching

cage

textolite, outer ring centred

contact angle [°]

country of origin

Dw - rolling element diameter [mm]

6.747

Dynamic load rating [N]

11400

limiting/attainable speed, grease [rpm]

45000

limiting/attainable speed, oil [rpm]

60000

precision

better than P4

preload

light preload

product feature

high precision bearing

Attributes Substitutes (13)

S6203 C TA P4+ UL GMN

Single row angular-contact ball bearing, high precision bearing

manufacturer	GMN
dimensions	17 x 40 x 12
Weight	0.068 kg
type	single row angular-contact ball bearing
product feature	high precision bearing
Dynamic load rating [N]	11400
static load rating [N]	6400
contact angle [°]	15
cage	textolite, outer ring centred
preload	light preload
bearing arrangement	for universal matching
precision	better than P4
Dw - rolling element diameter [mm]	6.747
country of origin
limiting/attainable speed, oil [rpm]	60000
limiting/attainable speed, grease [rpm]	45000
rolling element material	big steel balls
rings material	steel

Technical materials

leaflet

Product's substitutes

7203 CD/P4ADGA SKF

Single row angular-contact ball bearing, high precision ball bearings set, (two pcs)

17 x 40 x 12

in stock

2 weeks: 6 pair

7203 CDGA/P4A SKF

Single row angular-contact ball bearing, high precision bearing

17 x 40 x 12

in stock

Plewiska: 2 pcs

2 weeks: 5 pcs

7203CG/GNP4 NTN

Single row angular-contact ball bearing, high precision bearing

17 x 40 x 12

7203CG1DUJ74 SNR

Single row angular-contact ball bearing, high precision ball bearings set, (two pcs)

17 x 40 x 12

7203CG1UJ74 SNR

Single row angular-contact ball bearing, high precision bearing

17 x 40 x 12

in stock

2 weeks: 6 pcs

HY S6203 C TA P4+ DUL GMN

Single row angular-contact ball bearing, high precision ball bearings set, (two pcs)

17 x 40 x 12

B7203-C-2RSD-T-P4S-UL CSC

Single row angular-contact ball bearing, high precision bearing

17 x 40 x 12

in stock

Plewiska: 4 pcs

B7203-C-2RSD-T-P4S-UL FAG

Single row angular-contact ball bearing, high precision bearing

17 x 40 x 12

in stock

Plewiska: 4 pcs

B7203-C-T-P4S-DUL FAG

Single row angular-contact ball bearing, high precision ball bearings set, (two pcs)

17 x 40 x 12

B7203-C-T-P4S-UL CSC

Single row angular-contact ball bearing, high precision bearing

17 x 40 x 12

in stock

Plewiska: 2 pcs

B7203-C-T-P4S-UL FAG

Single row angular-contact ball bearing, high precision bearing

17 x 40 x 12

in stock

Plewiska: 6 pcs

HY S6203 C TA UP+ DUL GMN

Single row angular-contact ball bearing, high precision ball bearings set, (two pcs)

17 x 40 x 12

S6203 C TA P4+ DUL GMN

Single row angular-contact ball bearing, high precision ball bearings set, (two pcs)

17 x 40 x 12

in stock

Plewiska: 3 pair
