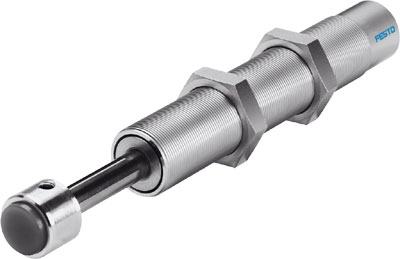

Hydraulic damper

YSR-16-20-C FESTO

Name: YSR-16-20-C FESTO
Rating: 5 (12 reviews)

34573 FESTO

Plewiska (2)

on stock

Details Attributes

YSR-16-20-C FESTO

Hydraulic damper

Feature	Value
Size	16
Stroke	20 mm
Cushioning	self-adjusting
Assembly position	Any
Position detection	No
Max. impact speed	3 m/s
Reset time short	0.3 s
Reset time long	1 s
Mode of operation	single-acting pushing action
Corrosion resistance classification CRC	2 - Moderate corrosion stress
Ambient temperature	-10 ... 80 °C
Cushioning length	20 mm
Max. stop force	2,000 N
Max. energy consumption per stroke	30 J
Max. energy consumption per hour	64,000 J
Max. residual energy	0.16 J
Reset force	6 N
Product weight	185 g
Mounting type	with lock nut
Materials note	Free of copper and PTFE Conforms to RoHS
Material seals	NBR
Material housing	Steel Galvanised
Material piston rod	High alloy steel
