You are here: Bearing housings and units Bearing units Cast iron housing units PME40-XL-N INA

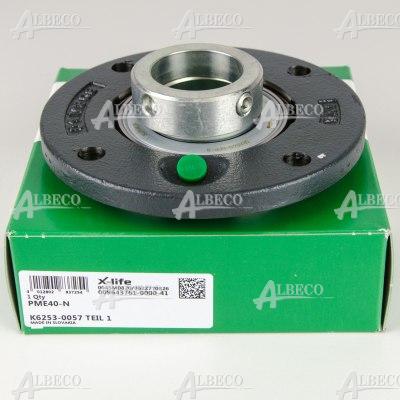

Cast iron bearing unit

PME40-XL-N INA

Name: PME40-XL-N INA
Rating: 5 (3 reviews)

LA400855487 FENDT

dimensions	40 x 0 x 0
Weight	1.63 kg
A1 [mm]	11.5
A [mm]	23
cage	polyamide
clearence	C3 - greater than normal
country of origin
D2 [mm]	120
Dynamic load rating [N]	34500
d [mm]	40
D [mm]	145
groove in housing for fixing protective caps	yes
groove on outer ring	yes

Attributes Substitutes (1)

PME40-XL-N INA

Cast iron bearing unit

manufacturer	INA
dimensions	40 x 0 x 0
Weight	1.63 kg
A [mm]	23
d [mm]	40
D [mm]	145
groove in housing for fixing protective caps	yes
clearence	C3 - greater than normal
groove on outer ring	yes
T [mm]	43.8
type	cast iron bearing unit
sealing	double-sided lip seal covered with a plate
A1 [mm]	11.5
D2 [mm]	120
Dynamic load rating [N]	34500
static load rating [N]	19800
cage	polyamide
