You are here: Linear motion Linear guides and carriages Profile guides and carriages KWVE25-B-HL-V1-G2 INA

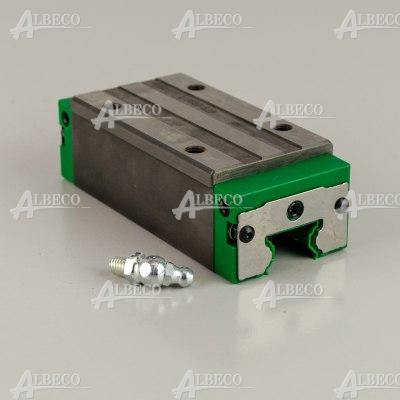

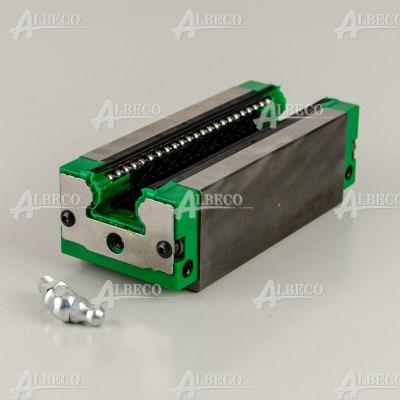

Linear recirculating ball bearing

KWVE25-B-HL-V1-G2 INA

Name: KWVE25-B-HL-V1-G2 INA
Rating: 4.5 (9 reviews)

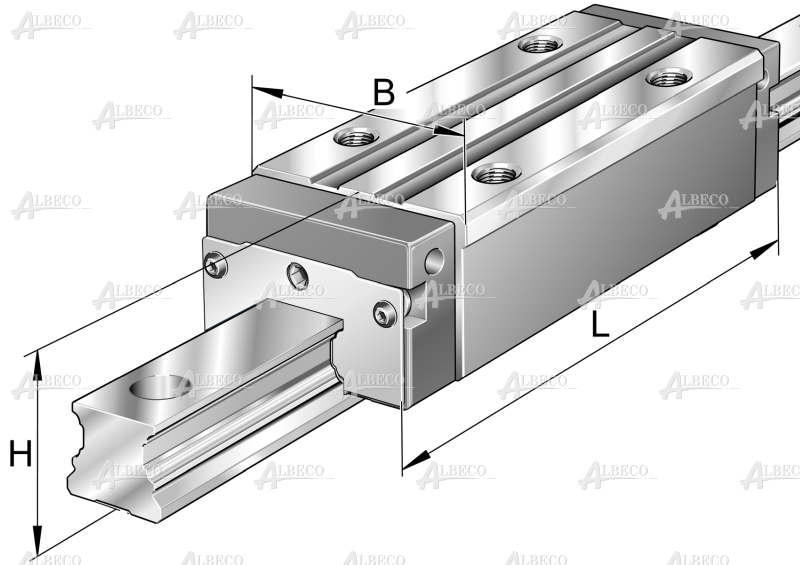

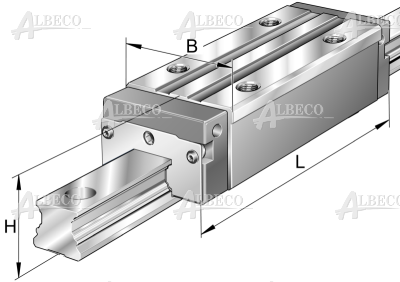

dimensions	0 x 48 x 109.1
Weight	1.026 kg
country of origin	Romania
Dynamic load rating [N]	23400
precision	precise accuracy
preload	medium preload
rail size	25
static load rating [N]	54000
static moment rating about X axis [Nm]	745
static moment rating about Z axis [Nm]	825
type	linear recirculating ball bearing

Plewiska (32)

on stock

Attributes Substitutes (2) Works with

KWVE25-B-HL-V1-G2 INA

Linear recirculating ball bearing

Attributes

manufacturer	INA
dimensions	0 x 48 x 109.1
Weight	1.026 kg
rail size	25
type	linear recirculating ball bearing
Dynamic load rating [N]	23400
static load rating [N]	54000
preload	medium preload
precision	precise accuracy
country of origin	Romania
static moment rating about X axis [Nm]	745
static moment rating about Z axis [Nm]	825
