dimensions | 9.525 x 0 x 0 |
Weight | 0.073 kg |

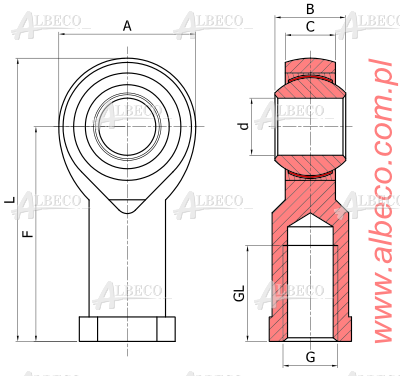

A - rod end outer diameter [mm] | 25.4 |
C - outer ring width [mm] | 10.312 |
country of origin | |
F - height to the axis [mm] | 41.275 |
friction pair | chrome steel/PTFE |
GL - thread length [mm] | 17.145 |
inner ring width [mm] | 12.7 |
L - rod head height [mm] | 53.975 |
thread | 3/8-24 UNF |
thread 2 | internal thread, right |
type | rod end |
AW 6 Z AURORA
Rod end
manufacturer | AURORA |
dimensions | 9.525 x 0 x 0 |
Weight | 0.073 kg |
A - rod end outer diameter [mm] | 25.4 |
inner ring width [mm] | 12.7 |
C - outer ring width [mm] | 10.312 |
F - height to the axis [mm] | 41.275 |
GL - thread length [mm] | 17.145 |
thread | 3/8-24 UNF |
L - rod head height [mm] | 53.975 |
friction pair | chrome steel/PTFE |
type | rod end |
country of origin | |
thread 2 | internal thread, right |
