You are here: Linear motion Ball and trapezoidal screws Trapezoidal screws and nuts Tr10x2 LH (FFR10TL) kołnierzowa, brąz CONTI

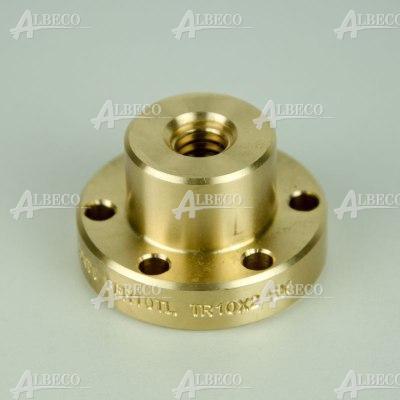

Trapezoidal nut

Tr10x2 LH (FFR10TL) kołnierzowa, brąz CONTI

dimensions 10 x 25 x 25
Weight 0.02 kg
country of origin Italy
D1 - flange diameter [mm] 42
D2 - pitch diameter [mm] 34
direction of lead left
e - flange thickness [mm] 10
hardness 60÷70 HB
material CC491K (CuSn5Zn5Pb5-C)
number of thread turns on shaft 1
stroke [mm] 2
type trapezoidal nut
Y [mm] 5
Plewiska (10)

on stock

Tr10x2 LH (FFR10TL) kołnierzowa, brąz CONTI

Trapezoidal nut

manufacturer CONTI
dimensions 10 x 25 x 25
Weight 0.02 kg
D1 - flange diameter [mm] 42
D2 - pitch diameter [mm] 34
e - flange thickness [mm] 10
direction of lead left
number of thread turns on shaft 1
material CC491K (CuSn5Zn5Pb5-C)
stroke [mm] 2
hardness 60÷70 HB
type trapezoidal nut
Y [mm] 5
country of origin Italy

Technical materials

Works with
Product

Tr10x2 LH INOX /1000 CONTI

Trapezoidal screw, stainless steel (quality class: 200µm /300mm)

Tr10x2 LH /2000 CONTI

Trapezoidal screw (quality class: 100µm /300mm)
