You are here: Linear motion Ball and trapezoidal screws Trapezoidal screws and nuts Tr20x4 LH (FFR20AL) kołnierzowa, brąz CONTI

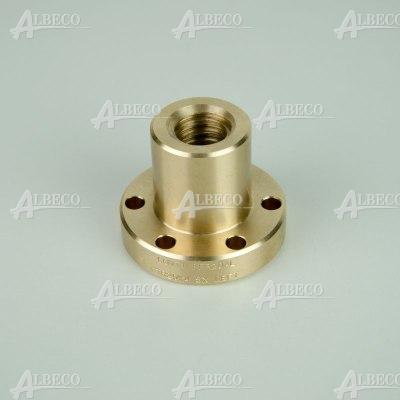

Trapezoidal nut

Tr20x4 LH (FFR20AL) kołnierzowa, brąz CONTI

Name: Tr20x4 LH (FFR20AL) kołnierzowa, brąz CONTI
Rating: 4.8 (7 reviews)

dimensions	20 x 32 x 44
Weight	0.357 kg
country of origin	Italy
D1 - flange diameter [mm]	55
D2 - pitch diameter [mm]	45
direction of lead	left
e - flange thickness [mm]	12
hardness	60÷70 HB
material	CC491K (CuSn5Zn5Pb5-C)
number of thread turns on shaft	1
stroke [mm]	4
type	trapezoidal nut
Y [mm]	6.5

Plewiska (7)

on stock

Olsztyn (1)

on stock

Attributes Works with

Tr20x4 LH (FFR20AL) kołnierzowa, brąz CONTI

Trapezoidal nut

manufacturer	CONTI
dimensions	20 x 32 x 44
Weight	0.357 kg
D1 - flange diameter [mm]	55
D2 - pitch diameter [mm]	45
e - flange thickness [mm]	12
direction of lead	left
number of thread turns on shaft	1
material	CC491K (CuSn5Zn5Pb5-C)
stroke [mm]	4
hardness	60÷70 HB
type	trapezoidal nut
Y [mm]	6.5
country of origin	Italy
