You are here: Bearings Ball bearings Angular contact ball bearings QJ218-XL-N2-MPA-C3 FAG

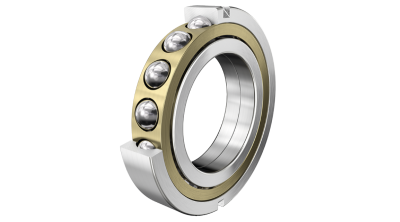

Four point contact bearing (operating temp.: -30÷150°C)

QJ218-XL-N2-MPA-C3 FAG

Name: QJ218-XL-N2-MPA-C3 FAG
Rating: 5 (12 reviews)

dimensions	90 x 160 x 30
Weight	2.723 kg
cage	brass, guided on the outer ring
clearence	C3 - greater than normal
country of origin	Germany
Dynamic load rating [N]	181000
groove on outer ring	two retaining grooves in the outer ring
limiting speed [rpm]	8200
operating temp.	-30÷150°C
reference speed [rpm]	3850
sealing	none
split ring	inner
static load rating [N]	185000

Plewiska (7)

on stock

Attributes Substitutes (1)

QJ218-XL-N2-MPA-C3 FAG

Four point contact bearing (operating temp.: -30÷150°C)

Attributes

manufacturer	FAG
dimensions	90 x 160 x 30
Weight	2.723 kg
split ring	inner
clearence	C3 - greater than normal
groove on outer ring	two retaining grooves in the outer ring
operating temp.	-30÷150°C
type	four point contact bearing
sealing	none
Dynamic load rating [N]	181000
static load rating [N]	185000
cage	brass, guided on the outer ring
country of origin	Germany
limiting speed [rpm]	8200
reference speed [rpm]	3850
