Name: DS3031-0030 ACCURIDE
Rating: 4.9 (9 reviews)

DS3031-0030 ACCURIDE

dimensions

35.3 x 19.1 x 300

Weight

1.154 kg

additional description

Load rating 65kg if used for 10000 cycles with 450 mm wide drawer

additional description

Flat mount load rating 16kg if used for 10000 cycles with 450 mm wide drawer

cage

stainless steel

country of origin

Germany

extension length [mm]

317.4

flat mount

yes

front disconnect

grease

smar wysokotemperaturowy z atestem dla przemysłu spożywczego

load/pair [kg]

material

stainless steel

mounting

Required side space 0.2mm to 0.5mm

Details Attributes

DS3031-0030 ACCURIDE

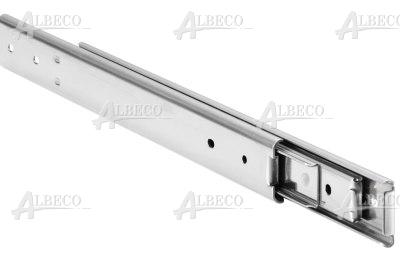

Telescopic slide, stainless steel, extension 100%+ (load/pair: 65kg, operating temp.: -20÷300°C)

Stainless Steel Telescopic Slide 300mm DS3031-0030

Corrosion resistant
Flat mounting reduces load rating by 75%
Austenitic Stainless Steel 304 (1.4301) - 500 h salt spray test
suitable for use in ovens up to 300˚C without negatively affecting the operation of slides

Attributes

manufacturer	ACCURIDE
dimensions	35.3 x 19.1 x 300
Weight	1.154 kg
slide length [mm]	300
extension length [mm]	317.4
material	stainless steel
mounting	Required side space 0.2mm to 0.5mm
mounting	M4 screw (DIN 965)
flat mount	yes
load/pair [kg]	65
grease	smar wysokotemperaturowy z atestem dla przemysłu spożywczego
operating temp.	-20÷300°C
type	telescopic slide
front disconnect	no
additional description	Load rating 65kg if used for 10000 cycles with 450 mm wide drawer
additional description	Flat mount load rating 16kg if used for 10000 cycles with 450 mm wide drawer
product feature	stainless steel
product feature	extension 100%+
cage	stainless steel
country of origin	Germany
rolling element material	AISI 420C stainless (1.4034), ball hardness 35HRC
section [mm]	35,3x19,1
