Hepco Motion DTS - Driven Track System

Hepco Motion DTS - Driven Track System

Hepco Motion DTS - Driven Track System

0 / 5 Reviews : 0

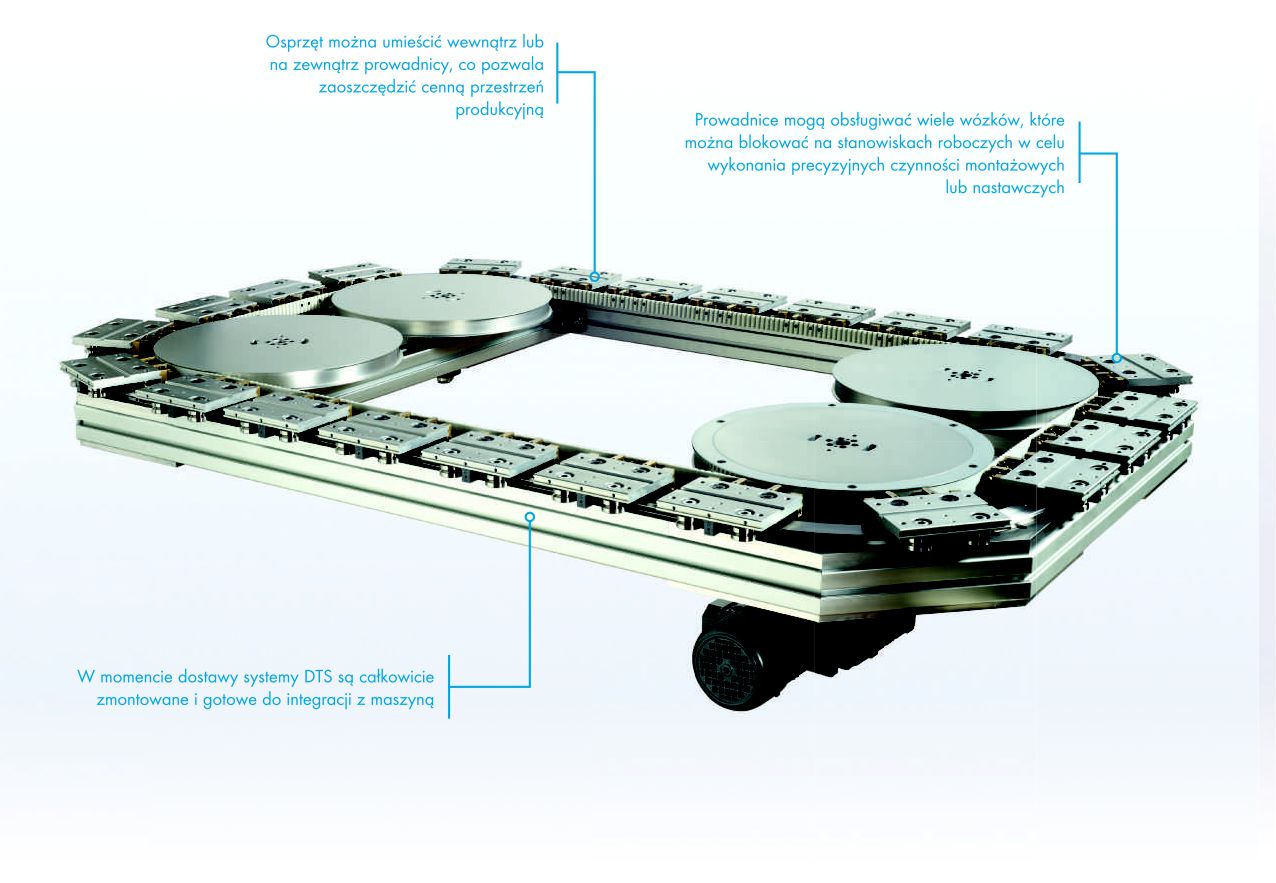

The HepcoMotion DTS system is a modular belt driven guiding system. It can be formed into an oval or rectangular shape with unlimited length and width. DTS components have different applications, the most popular of which is as the basis of automated production cells.

Load range : 0 & ndash; 400N
Speeds : 0 & ndash; 1m / s
& bull; The system can be easily integrated into a multifunction machine as a transport or positioning system.
& bull; Belt drive ensures quiet operation.
& bull; Possibility to select individual elements of the DTS system in the case of designing systems according to individual requirements.
& nbsp;
DTS 2 High Speed ​​Powered Guide System.
The DTS 2 motorized system was developed for applications where high speeds are required.
The screw drive ensures easy positioning with maximum accuracy and without the risk of detachment of the wheel.
& nbsp;
Load range : 0 - 1000N
Speeds : 0- 3m / s
  • The constant speed of the wheels moving along the guide ensures smooth and continuous movement.
  • High accelerations enable faster cycle times.
  • A corrosion-resistant version is offered.
