Schaeffler Black Series
/ 5 Reviews :

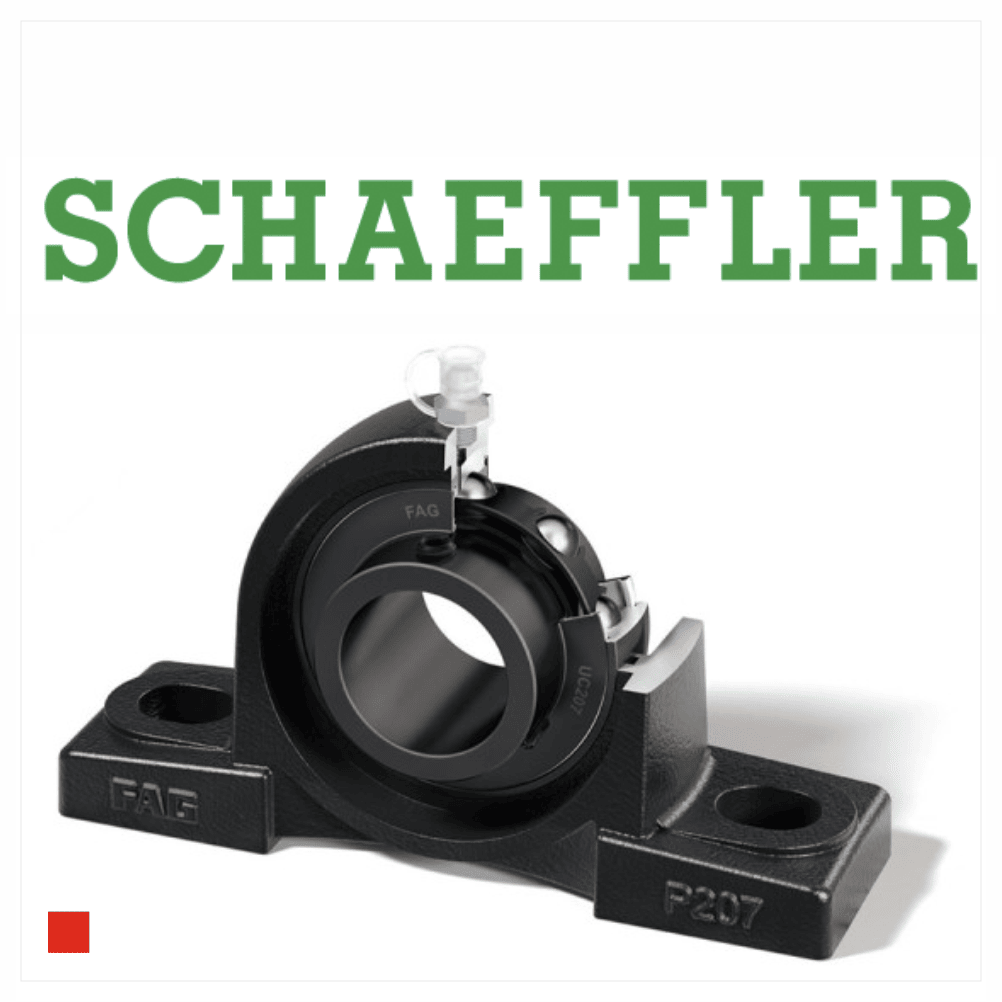

Self-aligning units with Schaeffler FAG Black Series (FAG-Black-Series) luminaires are easy to install, smooth running and reliable. The primer-coated dimensions of FAG cast iron housings comply with JIS B 1559. These one-piece gray cast iron housings handle medium to heavy transverse and axial loads.

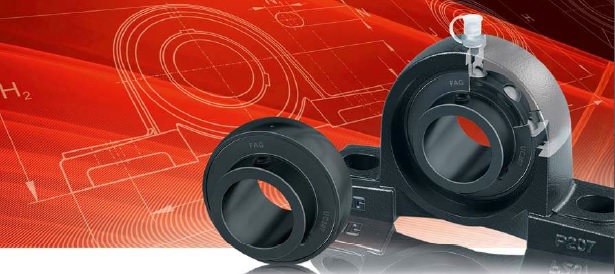

BLACK SERIES - bearing units
What do you gain?
- interchangeable according to the JIS standard
- easy assembly
- attractive price
- silent operation
- energy efficiency
- long life grease
- low heat generation
- reliability, stiffness, anti-corrosion
- high load capacity and long service life
- extended maintenance period
Main advantages:
- easy assembly
- low friction and quiet operation
- reliability and long life of the bearings
Properties:
- Luminaire dimensions in accordance with JIS B 1559
- Housings in gray cast iron, painted
- Self-aligning bearings based on 62 series ball bearings
- Rings oxidized to improve corrosion resistance
- Versions available with metric or inch bore diameters
- One-piece seal with lip seal
- Polyamide cage optimized for friction
- Factory lubricated, with lubrication hole
- Two set screws offset by 120 & deg;
- Lock pin to fix outer ring
- Bearing clearance C3 & ndash; different radial clearance on request
Product table:
| Hole diameter | Stand alone | Four-hole fitting | Two-hole fitting | Self-aligning bearing |
| 20 mm | UCP204 | UCF204 | UCFL204 | UC204 |
| 0.3 / 4 & quot; | UCP204-12 | UCF204-12 | UCFL204-12 | UC204-12 |
| 25 mm | UCP205 | UCF205 | UCFL205 | UC205 |
| 1.0 / 0 & quot; | UCP205-16 | UCF205-16 | UCFL205-16 | UC205-16 |
| 30 mm | UCP206 | UCF206 | UCFL206 | UC206 |
| 1.1 / 8 & quot; | UCP206-18 | UCF206-18 | UCFL206-18 | UC206-18 |
| 35 mm | UCP207 | UCF207 | UCFL207 | UC207 |
| 1.1 / 4 & quot; | UCP207-20 | UCF207-20 | UCFL207-20 | UC207-20 |
| 40 mm | UCP208 | UCF208 | UCFL208 | UC208 |
| 1.1 / 2 & quot; | UCP208-24 | UCF208-24 | UCFL208-24 | UC208-24 |
| 45 mm | UCP209 | UCF209 | UCFL209 | UC209 |
| 1.3 / 4 & quot; | UCP209-28 | UCF209-28 | UCFL209-28 | UC209-28 |
| 50 mm | UCP210 | UCF210 | UCFL210 | UC210 |
| 1.7 / 8 & quot; | UCP210-30 | UCF210-30 | UCFL210-30 | UC210-30 |
| 55 mm | UCP211 | UCF211 | UCFL211 | UC211 |
| 2 & quot; | UCP211-32 | UCF211-32 | UCFL211-32 | UC211-32 |
| 60mm | UCP212 | UCF212 | UCFL212 | UC212 |
| 2.1 / 4 & quot; | UCP212-36 | UCF212-36 | UCFL212-36 | UC212-36 |
Typical application areas:
- Agriculture, construction and mining
- Drive and transport technology
- Pumps
- Textile, stationery and woodworking machinery
- Machines for the woodworking, filling and packaging industry
- Steel processing, heavy industry
Check the availability of the Schaeffler cast iron units in our store:
