You are here: Bearing housings and units Bearing units Cast iron housing units UKFC215-J7 FAG

Cast iron bearing unit with adapter sleeve

UKFC215-J7 FAG

Name: UKFC215-J7 FAG
Rating: 4.5 (10 reviews)

Plewiska (3)

on stock

Attributes Substitutes (1)

UKFC215-J7 FAG

Cast iron bearing unit with adapter sleeve

Attributes

manufacturer	FAG
dimensions	65 x 0 x 0
Weight	7.8 kg

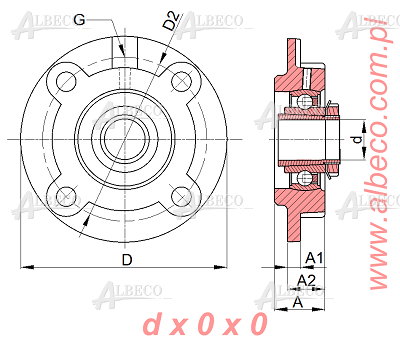

A [mm]	56
d [mm]	65
D [mm]	220
clearence	C4 - greater than C3
N [mm]	19
tolerance	hole tolerance in the housing J7, not H7 (tighter fit - standard for FAG)
type	cast iron bearing unit with adapter sleeve
sealing	double-sided lip seal covered with a steel sheet washers with outer flinger shield with corrosion protection.
used with	H2315
A1 [mm]	18
A2 [mm]	40
D2 [mm]	184
Dynamic load rating [N]	66000
static load rating [N]	44500
cage	polyamide
taper	taper 1:12
country of origin	Vietnam
