dimensions | 55 x 120 x 49.2 |
Weight | 2.273 kg |
clearence | C3 - greater than normal |
contact angle [°] | 30 |
country of origin | Austria |
Dynamic load rating [N] | 112000 |
limiting speed [rpm] | 5300 |
reference speed [rpm] | 6000 |
sealing | double-sided non-contact shields |
static load rating [N] | 81500 |
type | double row angular-contact ball bearing |

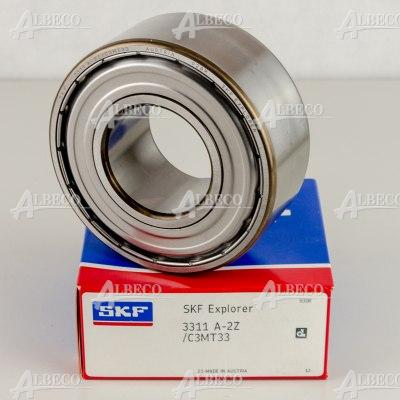

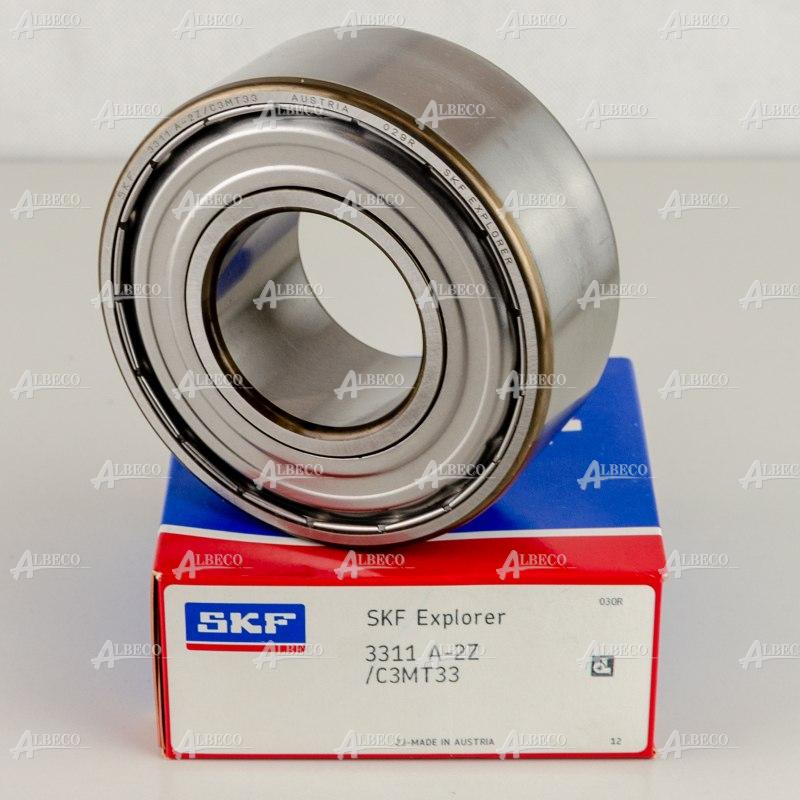

3311 A-2Z/C3MT33 SKF
Double row angular-contact ball bearing
manufacturer | SKF |
dimensions | 55 x 120 x 49.2 |
Weight | 2.273 kg |
clearence | C3 - greater than normal |
type | double row angular-contact ball bearing |
sealing | double-sided non-contact shields |
Dynamic load rating [N] | 112000 |
static load rating [N] | 81500 |
contact angle [°] | 30 |
country of origin | Austria |
limiting speed [rpm] | 5300 |
reference speed [rpm] | 6000 |
