You are here: Bearings Ball bearings Angular contact ball bearings 7204 ACDGA/P4A SKF

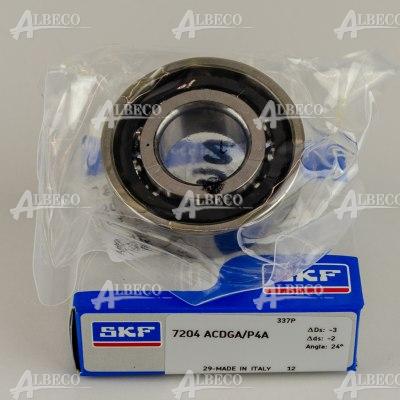

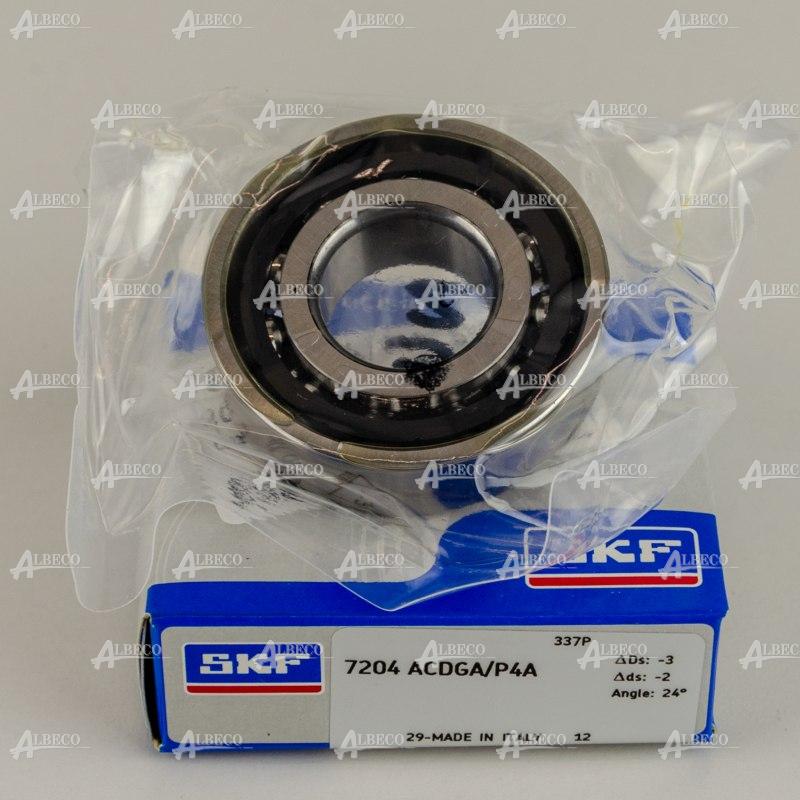

7204 ACDGA/P4A
7204 ACDGA/P4A
7204 ACDGA/P4A
7204 ACDGA/P4A

Single row angular-contact ball bearing, high precision bearing

7204 ACDGA/P4A SKF

dimensions 20 x 47 x 14
Weight 0.103 kg
bearing arrangement for universal matching
cage carbon fibre reinforced PEEK, outer ring centred
contact angle [°] 25
country of origin Italy
Dynamic load rating [N] 11400
grease none
precision better than P4
preload extra light preload
product feature high precision bearing
rolling element material big steel balls
sealing none
Plewiska (8)

on stock
Log in to see the price
Details Attributes Substitutes (10)

7204 ACDGA/P4A SKF

Single row angular-contact ball bearing, high precision bearing


manufacturer SKF
dimensions 20 x 47 x 14
Weight 0.103 kg
grease none
type single row angular-contact ball bearing
sealing none
product feature high precision bearing
Dynamic load rating [N] 11400
static load rating [N] 5600
contact angle [°] 25
cage carbon fibre reinforced PEEK, outer ring centred
preload extra light preload
bearing arrangement for universal matching
precision better than P4
country of origin Italy
rolling element material big steel balls

Technical materials

Product's substitutes
Product
dimensions
availability
Net price
7204 ACD/P4ADGA SKF

7204 ACD/P4ADGA SKF

 Single row angular-contact ball bearing, high precision ball bearings set, (two pcs)

20 x 47 x 14

in stock

Plewiska: 2 pair

Log in to see prices
7204 ACYU/GL P4 NACHI

7204 ACYU/GL P4 NACHI

 Single row angular-contact ball bearing, high precision bearing

20 x 47 x 14
B7204ETSULP4 RHP

B7204ETSULP4 RHP

 Single row angular-contact ball bearing, high precision bearing

20 x 47 x 14

in stock

Olsztyn: 1 pcs

Log in to see prices
7204HG1UJ74 SNR

7204HG1UJ74 SNR

 Single row angular-contact ball bearing, high precision bearing

20 x 47 x 14
B7204-E-T-P4S-DUL FAG

B7204-E-T-P4S-DUL FAG

 Single row angular-contact ball bearing, high precision ball bearings set, (two pcs)

20 x 47 x 14
B7204-E-T-P4S-UL FAG

B7204-E-T-P4S-UL FAG

 Single row angular-contact ball bearing, high precision bearing

20 x 47 x 14

in stock

Plewiska: 8 pcs

Log in to see prices
B7204-E-T-P4S-UL CSC

B7204-E-T-P4S-UL CSC

 Single row angular-contact ball bearing, high precision bearing

20 x 47 x 14

in stock

Plewiska: 4 pcs

Log in to see prices
S6204 E TA P4+ DUL GMN

S6204 E TA P4+ DUL GMN

 Single row angular-contact ball bearing, high precision ball bearings set, (two pcs)

20 x 47 x 14

in stock

Plewiska: 2 pair

Log in to see prices
S6204 E TA P4+ UL GMN

S6204 E TA P4+ UL GMN

 Single row angular-contact ball bearing, high precision bearing

20 x 47 x 14

in stock

Plewiska: 2 pcs

Log in to see prices
S6204 E TXM P4+ DUL GMN

S6204 E TXM P4+ DUL GMN

 Single row angular-contact ball bearing, high precision ball bearings set, (two pcs)

20 x 47 x 14
