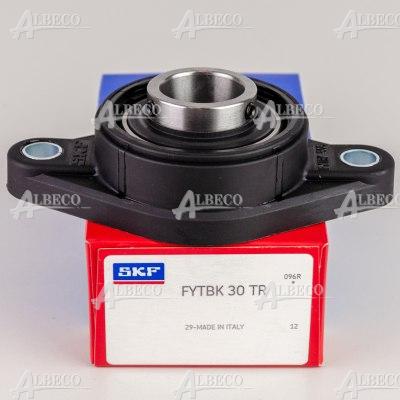

FYTBK 30 TR SKF
Thermoplastic bearing unit
manufacturer | SKF |
dimensions | 30 x 0 x 0 |
Weight | 0.473 kg |
A [mm] | 33 |
d [mm] | 30 |
L [mm] | 142.5 |
L2 [mm] | 83 |
clearence | C3 - greater than normal |
T [mm] | 42.2 |
type | thermoplastic bearing unit |
A1 [mm] | 15 |
J [mm] | 116.5 |
Dynamic load rating [N] | 19500 |
static load rating [N] | 11200 |
country of origin | Italy |
limiting speed [rpm] | 3800 |
