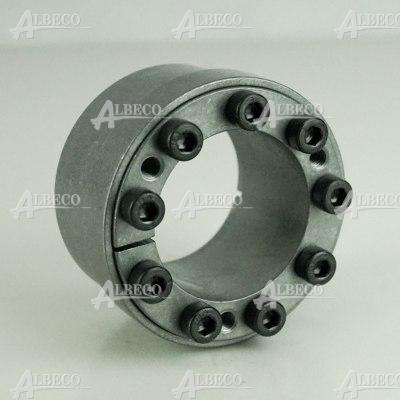

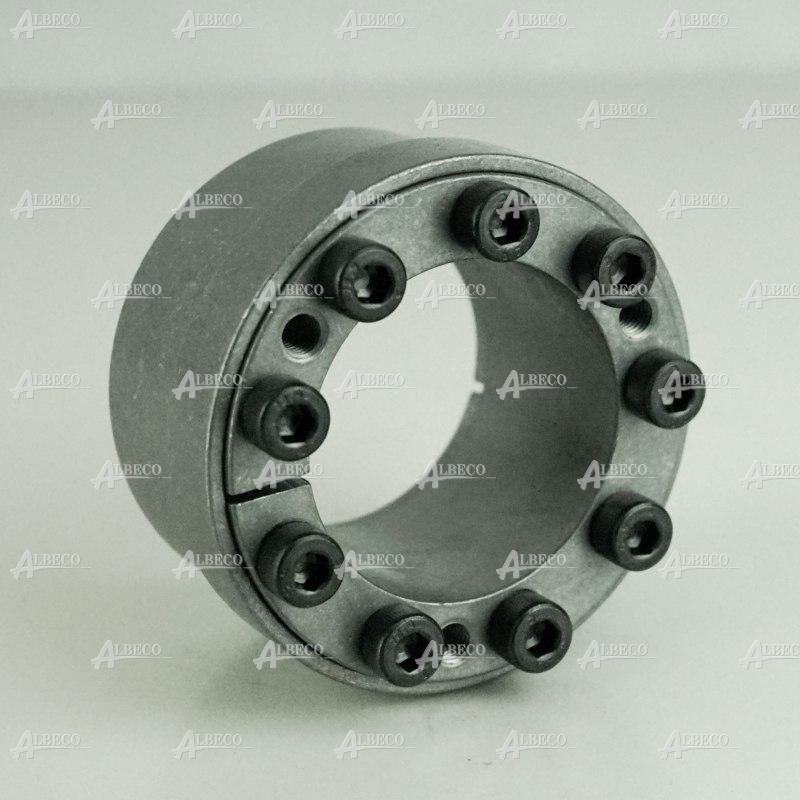

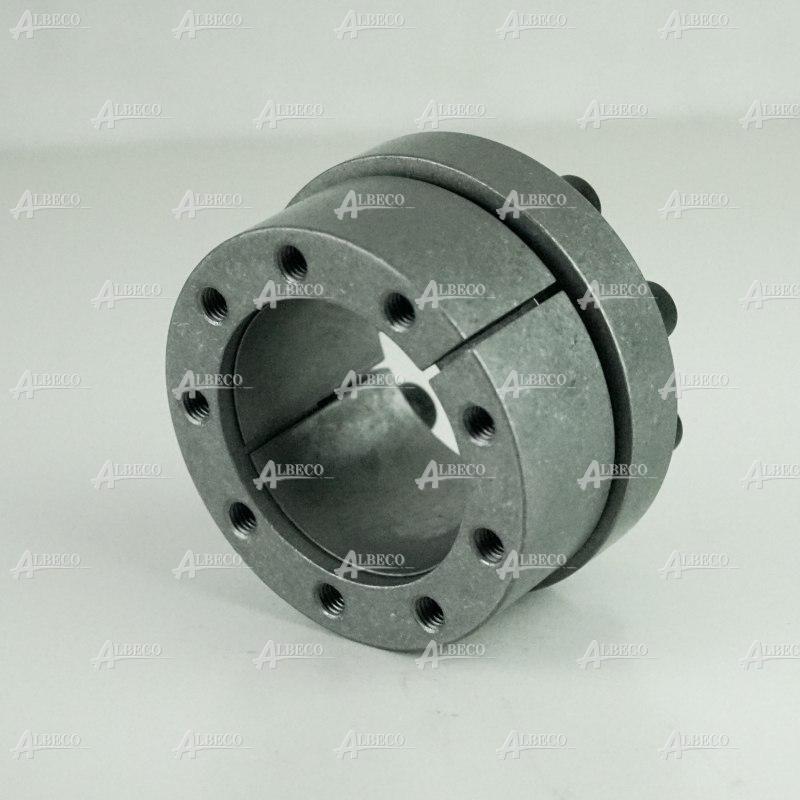

Clamping element, SIT-LOCK, self-centering

CAL5B-F60/90 SIT

Name: CAL5B-F60/90 SIT
Rating: 4.6 (2 reviews)

dimensions	60 x 90 x 52
Weight	1.399 kg
clamping screw	M8
country of origin	China
E [mm]	96
feature	no axial displacement when tightening the screws
H1 [mm]	35
H2 [mm]	30
Ht [mm]	60
material	steel
mounting holes number	9
product feature	self-centering
product feature	sit-lock

Plewiska (2)

on stock

Attributes Substitutes (1)

CAL5B-F60/90 SIT

Clamping element, SIT-LOCK, self-centering

manufacturer	SIT
dimensions	60 x 90 x 52
Weight	1.399 kg
feature	no axial displacement when tightening the screws
E [mm]	96
H1 [mm]	35
H2 [mm]	30
Ht [mm]	60
mounting holes number	9
material	steel
screw tightening torque [Nm]	41
transmissible torque moment [Nm]	2836
transmissible axial load [kN]	95
type	clamping element
product feature	self-centering
product feature	sit-lock
country of origin	China
clamping screw	M8
