You are here: Power transmission Drive belts and pulleys Timing belts and pulleys HDB64-5M15 SIT

64 5M 15 (1210)

64 5M 15 (1210)

64 5M 15 (1210)

64 5M 15 (1210)

64 5M 15 (1210)

64 5M 15 (1210)

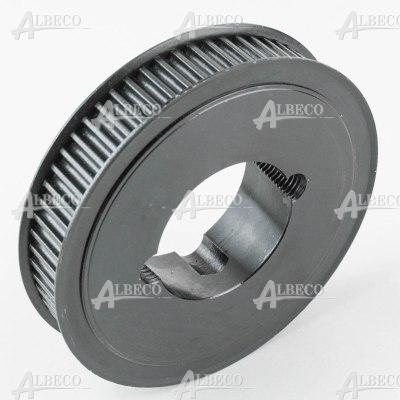

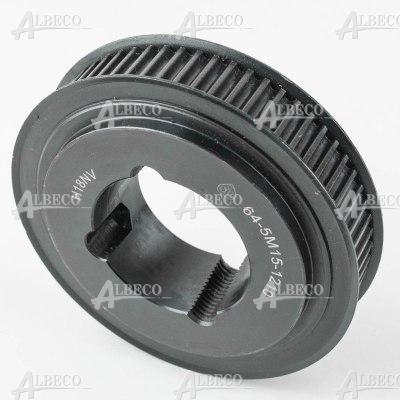

Pulley

HDB64-5M15 SIT

TL 64 5M 15 (1210) SIT PBH64-5M15 SIT

dimensions	0 x 100.72 x 20.5
Weight	1.06 kg
bo - belt width [mm]	15
country of origin	China
execution	2
E [mm]	106
feature	taper bushing mounting
feature	with hub
feature	pulley with flanges
H [mm]	80
material	carbon steel C45 / 1.0503 / AISI1045
number of teeth	64
profile	5M

Plewiska (1)

on stock

Log in to see the price

SIT

Attributes Substitutes (1)

HDB64-5M15 SIT

Pulley

Log in to see the price

manufacturer	SIT
dimensions	0 x 100.72 x 20.5
Weight	1.06 kg
bo - belt width [mm]	15
feature	taper bushing mounting
feature	with hub
feature	pulley with flanges
E [mm]	106
H [mm]	80
number of teeth	64
material	carbon steel C45 / 1.0503 / AISI1045
S [mm]	100.72
type	pulley
W [mm]	20.5
used with	Taper Lock 1210
Y [mm]	25
Z - depth [mm]	4.5
execution	2
profile	5M
R [mm]	101.86
country of origin	China
