You are here: Power transmission Drive belts and pulleys Timing belts and pulleys HDB32-14M55 SIT

32 14M 55 (2517)

32 14M 55 (2517)

32 14M 55 (2517)

32 14M 55 (2517)

32 14M 55 (2517)

32 14M 55 (2517)

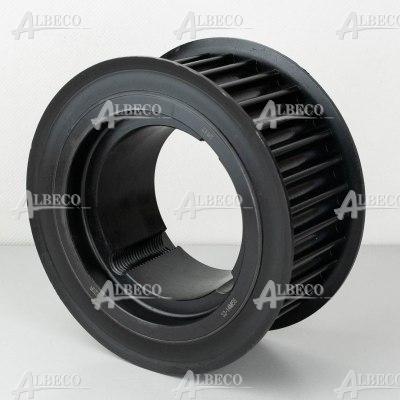

Pulley

HDB32-14M55 SIT

TL 32 14M 55 (2517) SIT PBH32-14M55 SIT

dimensions	0 x 139.88 x 70
Weight	4.099 kg
bo - belt width [mm]	55
country of origin	China
execution	5
E [mm]	154
feature	no hub
feature	pulley with flanges
feature	taper bushing mounting
material	carbon steel C45 / 1.0503 / AISI1045
number of teeth	32
profile	14M
R [mm]	142.6

Plewiska (2)

on stock

Log in to see the price

SIT

Attributes Substitutes (1)

HDB32-14M55 SIT

Pulley

Log in to see the price

Attributes

manufacturer	SIT
dimensions	0 x 139.88 x 70
Weight	4.099 kg
bo - belt width [mm]	55
feature	no hub
feature	pulley with flanges
feature	taper bushing mounting
E [mm]	154
number of teeth	32
material	carbon steel C45 / 1.0503 / AISI1045
S [mm]	139.88
type	pulley
W [mm]	70
used with	Taper Lock 2517
Y [mm]	45
Z - depth [mm]	12.5
execution	5
profile	14M
R [mm]	142.6
U [mm]	104
country of origin	China
