You are here: Power transmission Drive belts and pulleys Timing belts and pulleys HDB168-14M85 SIT

168 14M 85 (3535)

Pulley

HDB168-14M85 SIT

TL 168 14M 85 (3535) SIT PBH168-14M85 SIT

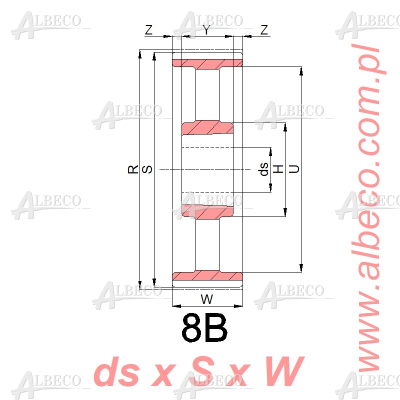

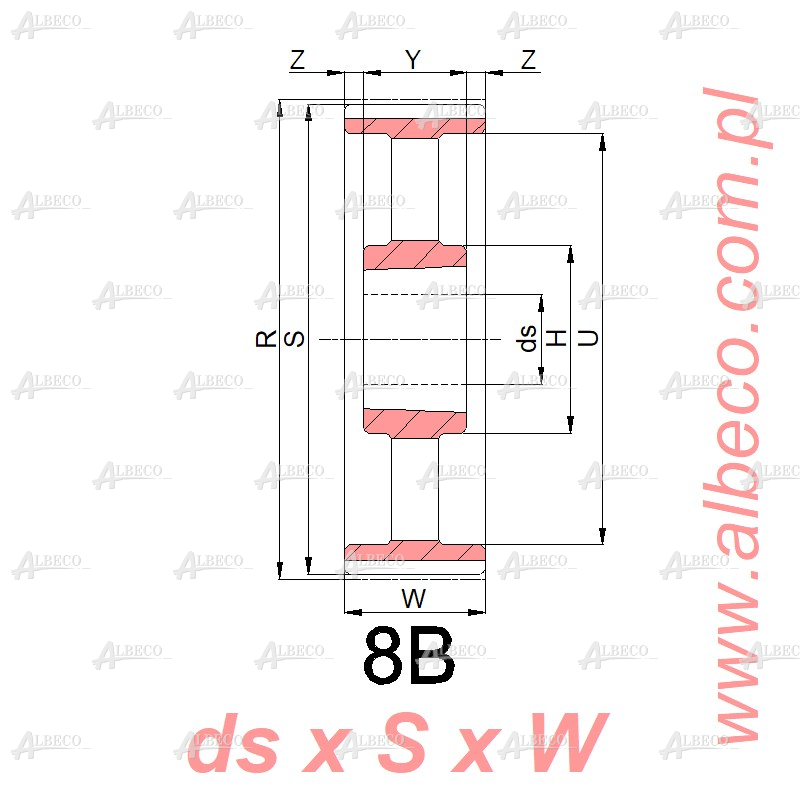

dimensions	0 x 745.87 x 102
Weight	0 kg
bo - belt width [mm]	85
execution	8B
feature	no hub
feature	no flange
feature	taper bushing mounting
H [mm]	178
material	grey cast iron
number of teeth	168
profile	14M
R [mm]	748.66
S [mm]	745.87

SIT

Attributes Substitutes (1)

HDB168-14M85 SIT

Pulley

Log in to ask for price and availability

Attributes

manufacturer	SIT
dimensions	0 x 745.87 x 102
Weight	0 kg
bo - belt width [mm]	85
feature	no hub
feature	no flange
feature	taper bushing mounting
H [mm]	178
number of teeth	168
material	grey cast iron
S [mm]	745.87
type	pulley
W [mm]	102
used with	Taper Lock 3535
Y [mm]	89
Z - depth [mm]	6.5
execution	8B
profile	14M
R [mm]	748.66
U [mm]	705
