VZBC-65-FF-16-22-F07-V4V4T-PP180-R-90-C FESTO

1913372 FESTO

Weight

17.665 kg

country of origin

DN średnica nominalna

material

stainless steel

medium

Sprężone powietrze wg ISO8573-1:2010 [-:-:-], ciecze obojętne, Gazy obojętne, Woda – nie para wodna

nominal pressure [bar]

product feature

stainless steel

thread

DN65

type

ball valve

working medium

Sprężone powietrze wg ISO8573-1:2010 [7:4:4]

working pressure [bar]

6÷8,4

Details Attributes

VZBC-65-FF-16-22-F07-V4V4T-PP180-R-90-C FESTO

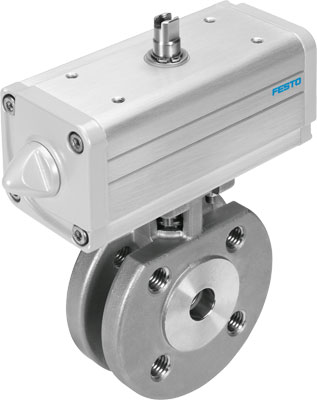

Ball valve, stainless steel

Data sheet:

Name: VZBC-65-FF-16-22-F07-V4V4T-PP180-R-90-C FESTO
Rating: 4.9 (13 reviews)

Feature	Value
Design structure	2-way ball valve Swivel drive
Type of actuation	pneumatic
Assembly position	Any
Mounting type	Line installation
Process valve connection	Ring housing with screw connection
Switching position indicator	Slot direction = flow direction
Nominal diameter DN	65
Operating pressure	6 ... 8.4 bar
Nominal pressure of process valve	16
Medium	Compressed air in accordance with ISO8573-1:2010 [-:-:-] Inert gases Water (no water vapour) Neutral fluids
Operating medium	Compressed air in accordance with ISO8573-1:2010 [7:4:4]
Note on operating and pilot medium	Lubricated operation possible (subsequently required for further operation)
Medium temperature	-10 ... 200 °C
Ambient temperature	-10 ... 80 °C
Flow rate Kv	507 m3/h
Max. surface temperature assembly	TX
Explosion group assembly	IIC, IIIC
Materials note	Contains PWIS substances Conforms to RoHS
Material housing	High alloy steel, non-corrosive
Material number for housing	1.4408
Material seals	PTFE PTFE reinforced
Material ball	High alloy steel, non-corrosive
Material number for ball	1.4408
Material shaft	High alloy steel, non-corrosive
Material number for shaft	1.4401
Product weight	14,300 g
Explosion-proof ambient temperature	-10°C <= Ta <= +60°C
Corrosion resistance classification CRC	3 - High corrosion stress

manufacturer	FESTO
dimensions	0 x 0 x 0
Weight	17.665 kg
working pressure [bar]	6÷8,4
thread	DN65
material	stainless steel
type	ball valve
product feature	stainless steel
country of origin
DN średnica nominalna	65
nominal pressure [bar]	16
medium	Sprężone powietrze wg ISO8573-1:2010 [-:-:-], ciecze obojętne, Gazy obojętne, Woda – nie para wodna
working medium	Sprężone powietrze wg ISO8573-1:2010 [7:4:4]
