You are here: Pneumatics and hydraulics Pneumatic valves and valve manifolds CPE10-PRS-1/4-7 FESTO

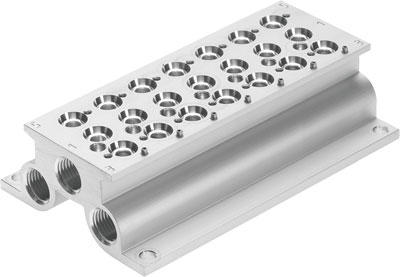

Valve plate

CPE10-PRS-1/4-7 FESTO

Name: CPE10-PRS-1/4-7 FESTO
Rating: 4.6 (15 reviews)

543826 FESTO

Details Attributes

CPE10-PRS-1/4-7 FESTO

Valve plate

Feature	Value
Grid dimension	16 mm
Assembly position	Any
Max. number of valve positions	7
Max. no. of pressure zones	2
Operating pressure	-0.9 ... 10 bar
Corrosion resistance classification CRC	2 - Moderate corrosion stress
Medium temperature	-5 ... 50 °C
Ambient temperature	-5 ... 50 °C
Max. tightening torque, valve mounting	1.2 Nm
Product weight	371 g
Type of mounting in-line valve manifold	with through hole
Mounting method for valve	with internal (female) thread
Pneumatic connection, port 1	G1/4
Pneumatic connection, port 3	G1/4
Pneumatic connection, port 5	G1/4
Materials note	Conforms to RoHS
Material manifold	Wrought Aluminium alloy
